HARKEN 45 MM ALUMINIUM ELEMENT BLOCK - SINGLE/SWIVEL

or 4 interest free payments of $14.98

Regular price $59.95

Available: In stock
Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size...
Quantity
SKU: 6230 Categories: , ,

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

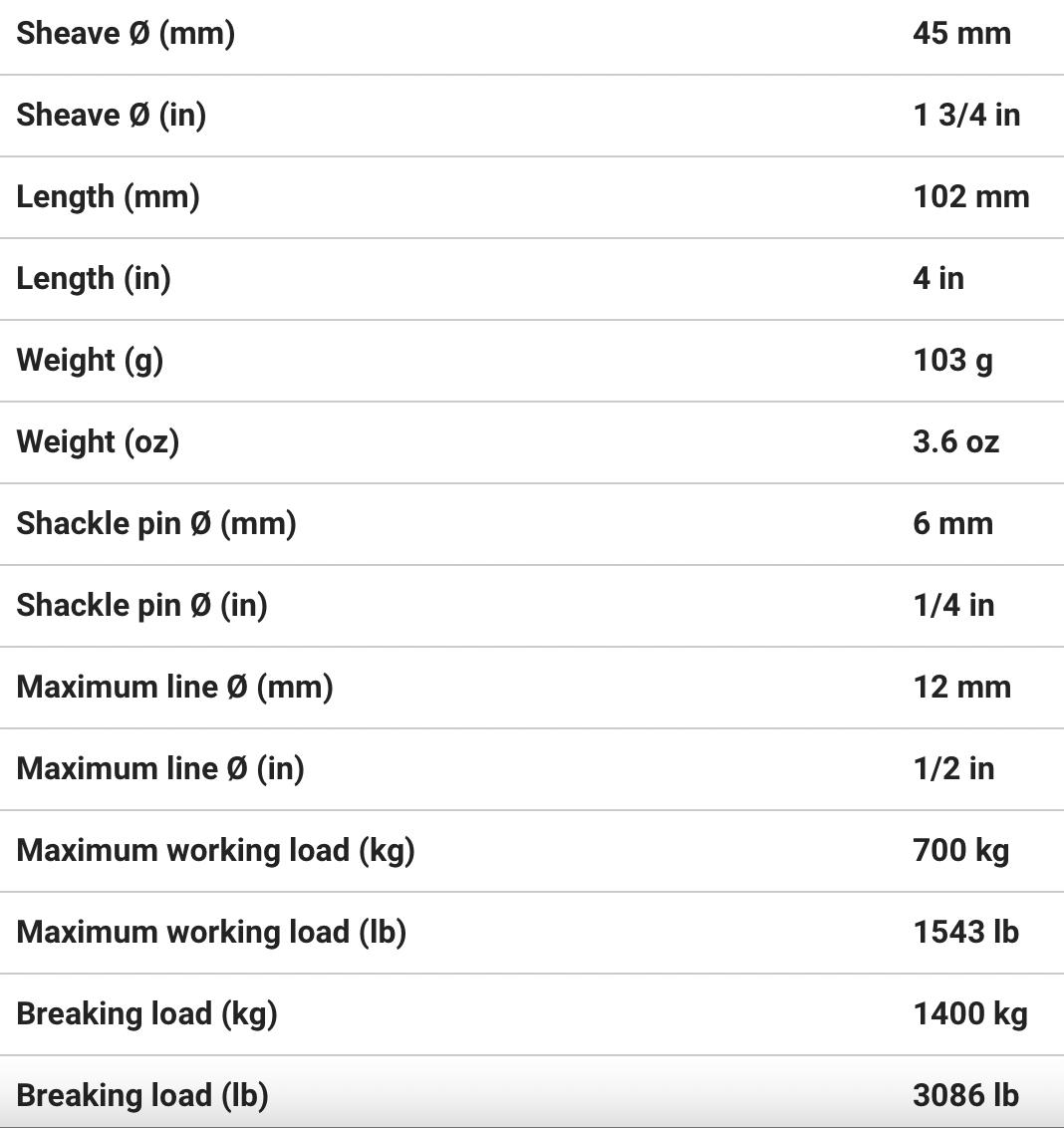

Sheave Ø (mm)45 mm

Sheave Ø (in)1 3/4 in

Length (mm)102 mm

Length (in)4 in

Weight (g)103 g

Weight (oz)3.6 oz

Shackle pin Ø (mm)6 mm

Shackle pin Ø (in)1/4 in

Maximum line Ø (mm)12 mm

Maximum line Ø (in)1/2 in

Maximum working load (kg)700 kg

Maximum working load (lb)1543 lb

Breaking load (kg)1400 kg

Breaking load (lb)3086 lb
