HARKEN 45MM ELEMENT BLOCK - TRIPLE/SWIVEL/BECKET

or 4 interest free payments of $50.08

Regular price $200.32 $267.10

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size...
Quantity
SKU: HK6241 Categories: , ,

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

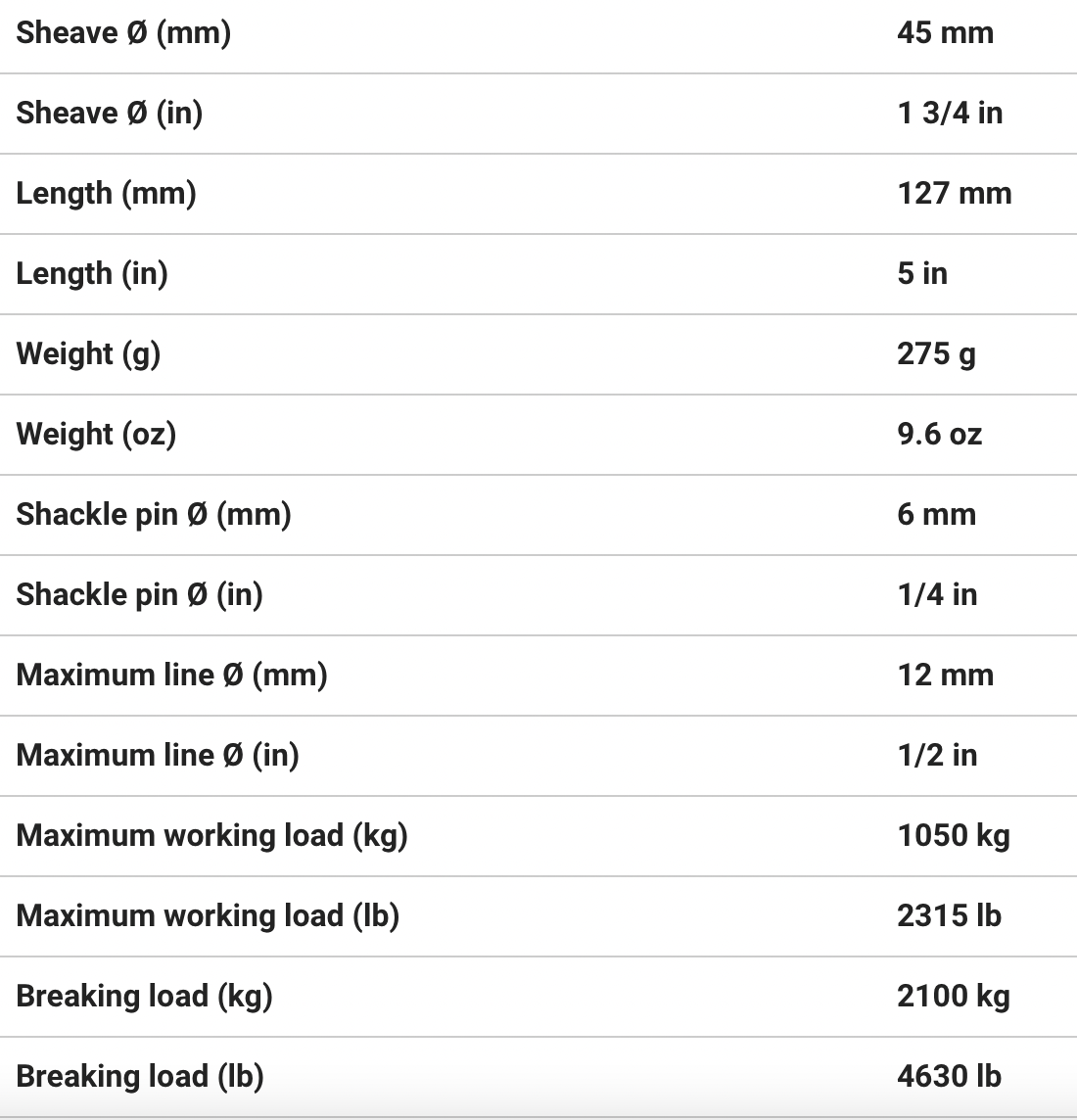

Sheave Ø (mm)45 mm

Sheave Ø (in)1 3/4 in

Length (mm)127 mm

Length (in)5 in

Weight (g)275 g

Weight (oz)9.6 oz

Shackle pin Ø (mm)6 mm

Shackle pin Ø (in)1/4 in

Maximum line Ø (mm)12 mm

Maximum line Ø (in)1/2 in

Maximum working load (kg)1050 kg

Maximum working load (lb)2315 lb

Breaking load (kg)2100 kg

Breaking load (lb)4630 lb





Vendor:

bosunsboat

SKU:

HK6241

Weight:

0.2 kg
