HARKEN 45MM ELEMENT BLOCKS - FIDDLE/150 CAM-MATIC/SWIVEL

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

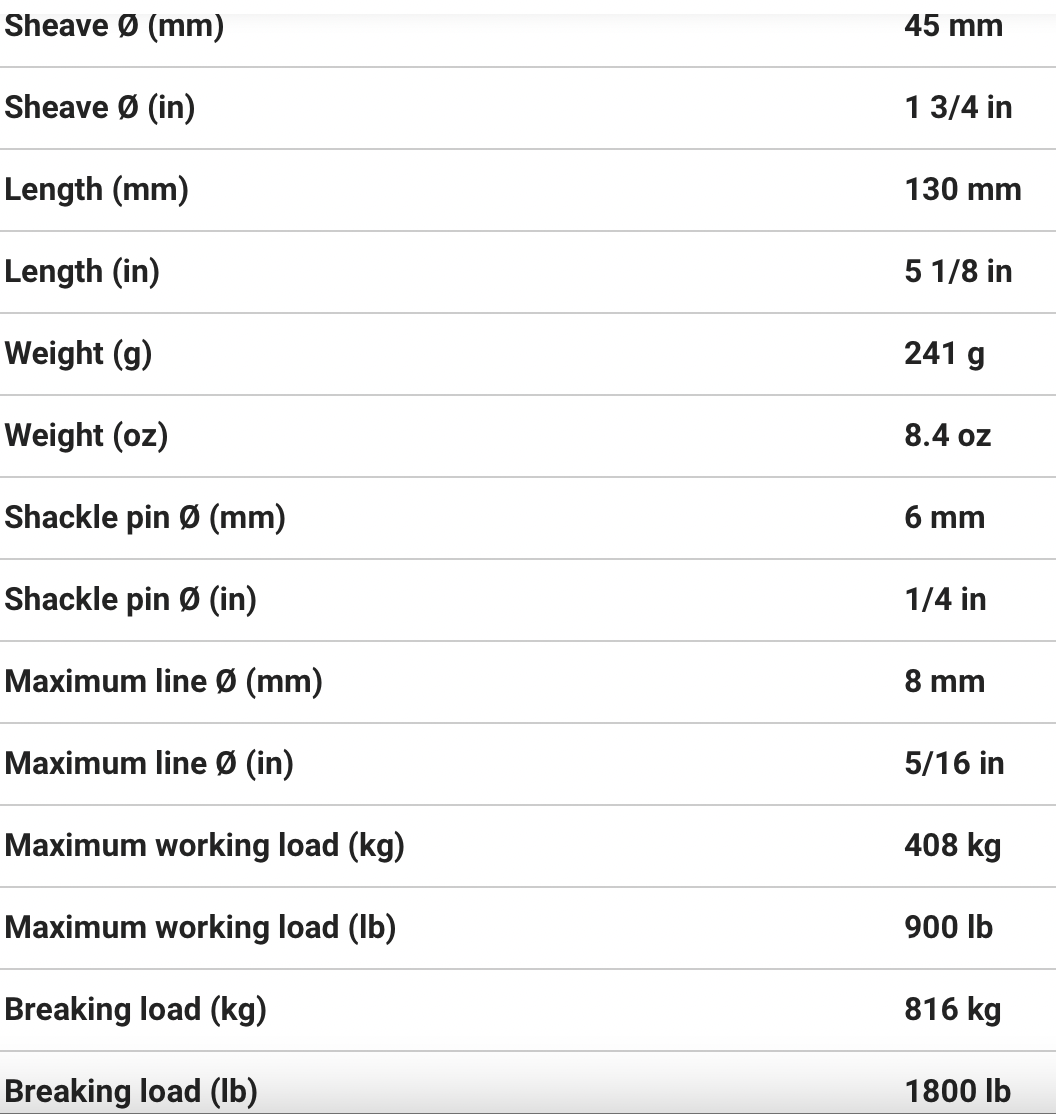

Sheave Ø (mm)45 mm

Sheave Ø (in)1 3/4 in

Length (mm)130 mm

Length (in)5 1/8 in

Weight (g)241 g

Weight (oz)8.4 oz

Shackle pin Ø (mm)6 mm

Shackle pin Ø (in)1/4 in

Maximum line Ø (mm)8 mm

Maximum line Ø (in)5/16 in

Maximum working load (kg)408 kg

Maximum working load (lb)900 lb

Breaking load (kg)816 kg

Breaking load (lb)1800 lb
