HARKEN 60MM ELEMENT BLOCK - TRIPLE/150 CAM-MULTI/SWIVEL

or 4 interest free payments of $91.23

Regular price $364.95 $449.98

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size...
Quantity
Type: sail hardware SKU: HK6274 Categories: , , ,

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

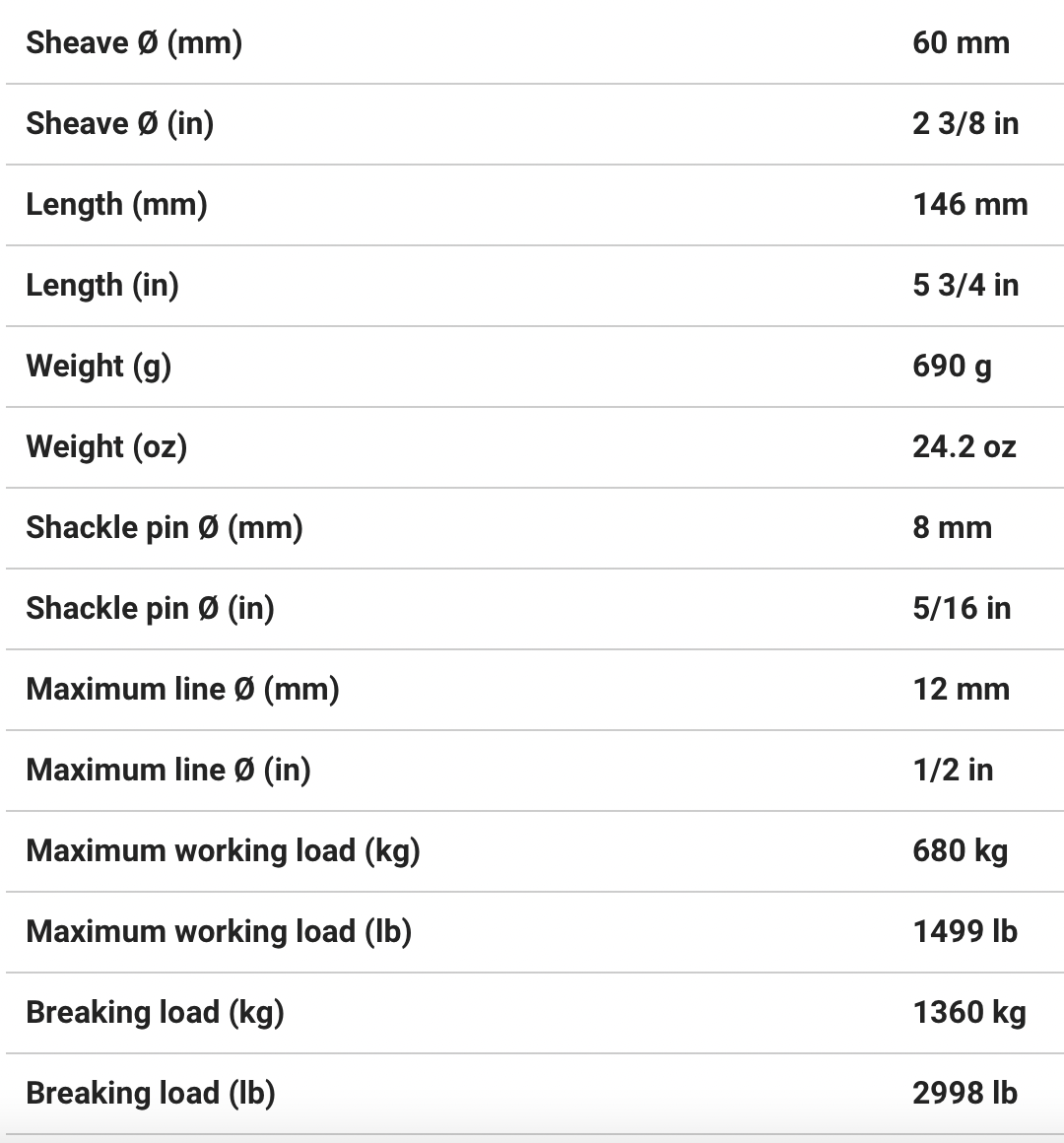

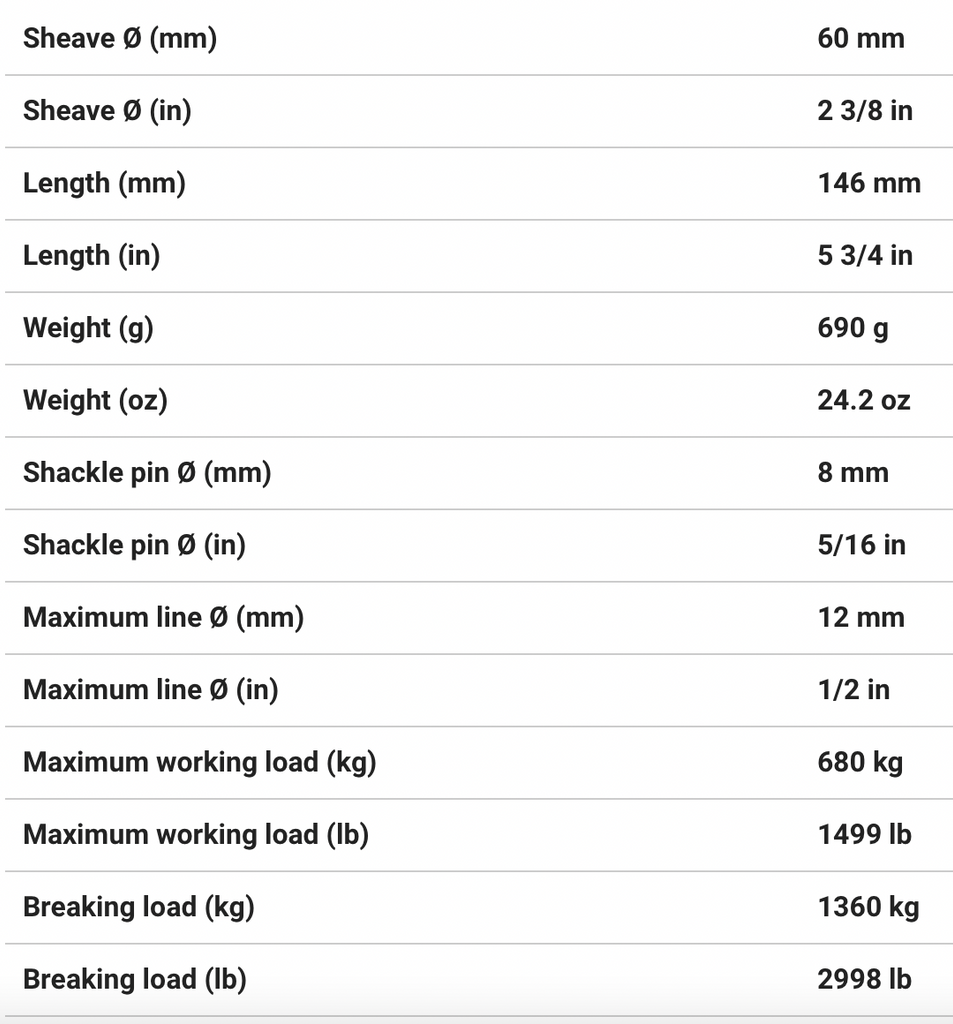

Sheave Ø (mm)60 mm
Sheave Ø (in)2 3/8 in
Length (mm)146 mm
Length (in)5 3/4 in
Weight (g)690 g
Weight (oz)24.2 oz
Shackle pin Ø (mm)8 mm
Shackle pin Ø (in)5/16 in
Maximum line Ø (mm)12 mm
Maximum line Ø (in)1/2 in
Maximum working load (kg)680 kg
Maximum working load (lb)1499 lb
Breaking load (kg)1360 kg
Breaking load (lb)2998 lb
Type:

sail hardware

Vendor:

bosunsboat

SKU:

HK6274

Weight:

0.2 kg
