HARKEN 80MM ELEMENT BLOCK - DOUBLE/SWIVEL

or 4 interest free payments of $78.23

Regular price $312.95 $382.69

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size...
Quantity
Type: sail hardware SKU: HK6296 Categories: , ,

Element blocks introduce sideplates that combine forged aluminium and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

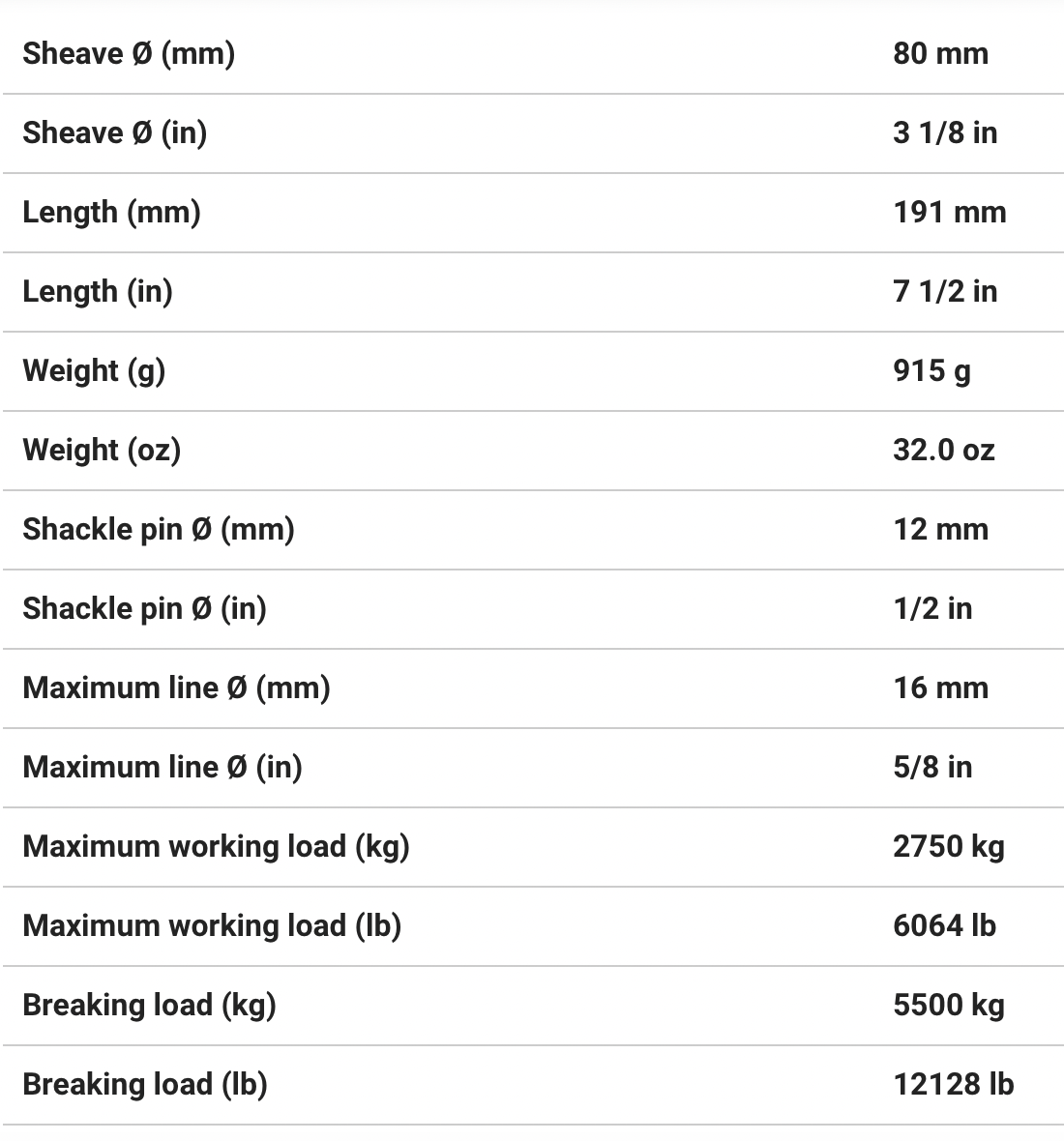

Sheave Ø (mm)80 mm

Sheave Ø (in)3 1/8 in

Length (mm)191 mm

Length (in)7 1/2 in

Weight (g)915 g

Weight (oz)32.0 oz

Shackle pin Ø (mm)12 mm

Shackle pin Ø (in)1/2 in

Maximum line Ø (mm)16 mm

Maximum line Ø (in)5/8 in

Maximum working load (kg)2750 kg

Maximum working load (lb)6064 lb

Breaking load (kg)5500 kg

Breaking load (lb)12128 lb



Type:

sail hardware

Vendor:

bosunsboat

SKU:

HK6296

Weight:

0.2 kg
