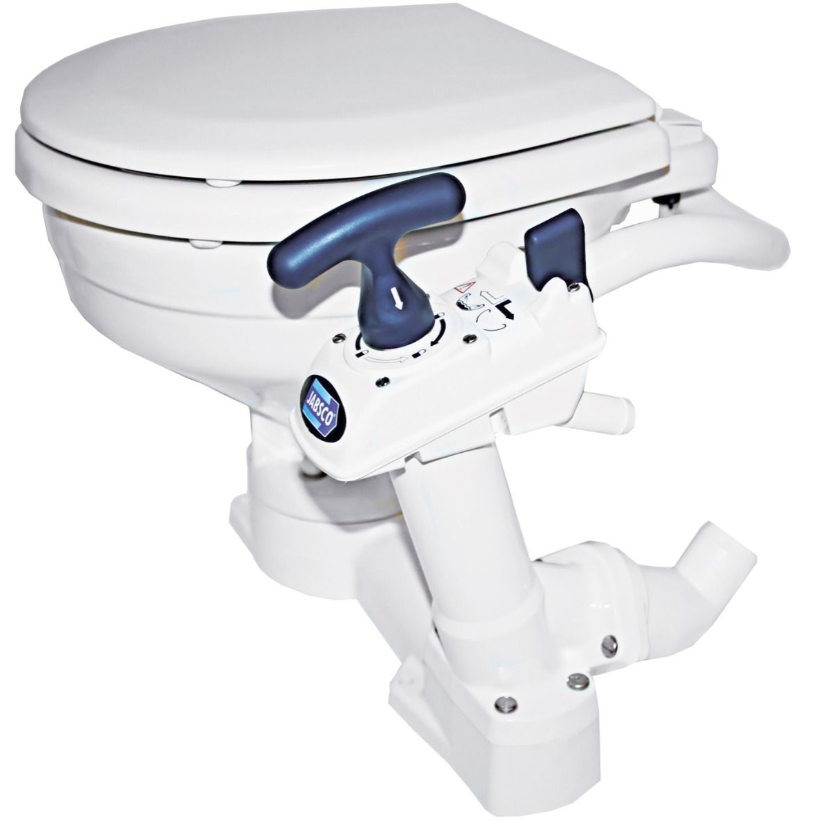

Toilet-Jabsco Manual Lge

SKU: J10-102
$543.95 $578.90


Large bowl manual toilet 29120-5100 470mm wide x 480mm deep x 350mm high

The world best selling marine toilet is now even better!

The JABSCO TWIST-N-LOCK manual marine toilet is now safer, stronger, performs better, is better looking and easier to maintain.

The twist 'n' lock action handle locks the system and guards against siphoning, flooding and waste backflow with an easy 90 deg turn of the handle. The white enamelled wooden seat and lid is more comfortable and durable than ever.

Jabsco are the world's largest manufacturer of small craft marine toilet systems supplying major boatbuilders throughout the world.

All their experience has been applied to refi ning the Jabsco Twist-N-Lock toilet to be the best performing and easiest to maintain available.

2 sizes are available - standard compact bowl or large bowl and seat which gives you the comfort you are used to at home.

  1. Twist-N-Lock safety handle prevents accidental backflow and flooding
  2. Powerful swirl action for effi cient fl ushing
  3. Full sized external seal housing allows quick access to pump cylinder for servicing
  4. Pure white easy clean vitreous china bowl
  5. 2 bowl sizes -standard (compact) or large
  6. Constant 38mm bore waste pipe
  7. Crevice free contours and smooth plastic mouldings for easy cleaning and hygiene
  8. Reversible pump mounting for choice of right or left handed installation
  9. Stylish luxury seat & lid
  10. Automatic vacuum breaker - easy pumping
  11. Powerful self-priming pump for above or below waterline installation
  12. Angled pump housing and long stroke for ease of operation
  13. Multi-angle discharge elbow for easy install

Corrosion resistant materials are used throughout the toilet for reliable service with salt water. All fastenings face towards the front or top of toilet for ease of maintenance

J10-100 Standard compact bowl toilet 29090-5000 450mm wide x 410mm deep x 340mm high

J10-102 Large bowl manual toilet 29120-5100 470mm wide x 480mm deep x 350mm high

Both marine toilets have connections for 20mm (3/4") I.D inlet hose and 38mm (1 1/2") outlet hose.
