LENCO 12V Edge Mount Trim Tab & LED Indicator Switch Kit - With Electro Polished Plates
Description
Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.
Lenco trim tabs make your boat ride smoother, drier, faster, more fuel efficient and increase safety, whether on a small runabout or a mega-yacht.
Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco trim tabs are oil-free and environmentally friendly.
When choosing the correct Trim Tabs for your boats application, firstly determine what size plates suit your size of boat then how much transom height clearance you have, this will determine whether you need a standard mount or edge mount plates.
FEATURES
- Softer, Smoother, Safer ride.
- Lenco Electric Actuators react instantaneously unlike hydraulic tabs.
- Fuel savings.
- Can be installed on any boat with any engine.
- Easy retrofit to boats with hydraulic tabs.
- Fast and easy installation.

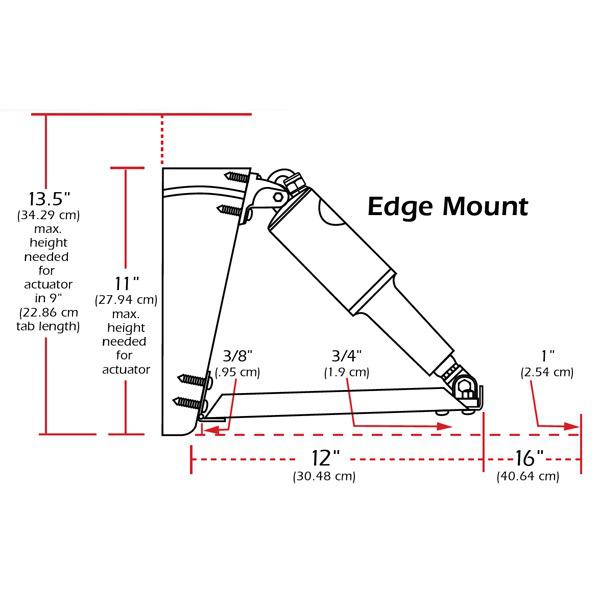

The Edge Mount Trim tab is perfect for boats with a low transom requiring a maximum height of only 11" (280mm) to mount the actuator.
LED Indicator Tactile Switch Option - Electro Polished Trim Tabs - Built-in auto retract.
- 12/24 volt.
- LED indicator displays the exact position of your trim tabs, Auto brightness adjusting.
- Self check feature.
- Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit.
- 36" power pigtail for control box.

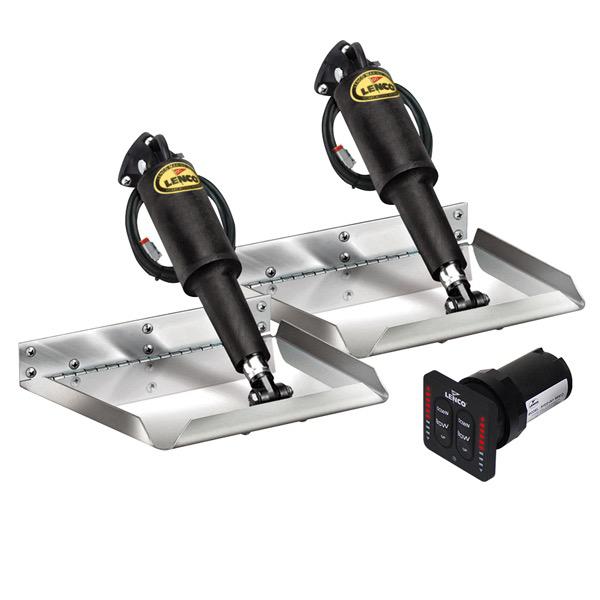

Edge Mount Trim Tab Kit: - 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1" turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8" diameter hinge pin.
- 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
- 2 x actuator extension wiring harness (6m) with Deutsch connectors.
- 1 x set of stainless steel fasteners.
- 2 x upper mounting bracket with gland seal.
- 2 x lower mounting bracket.
- Lenco owner’s installation manual.
- 5 Year Warranty (Recreational Use).
NOTE: 24 Volt Option Available.
*All standard mount trim tabs kits are supplied in retail packages
