LENCO 12V Standard Mount Trim Tab Kit - No Swicth

SKU: 55444

$1,559.00 $1,713.95

Color

NA

Size

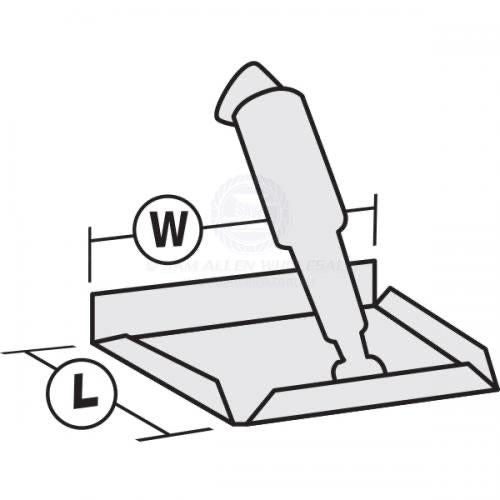

12"(L) x 24"(W) 12"(L) x 18"(W) 12"(L) x 12"(W) 9"(L) x 24"(W) 9"(L) x 18"(W) 9"(L) x 12"(W) 9"(L) x 9"(W)

Description

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.
Lenco trim tabs make your boat ride smoother, drier, faster, more fuel efficient and increase safety, whether on a small runabout or a mega-yacht.
Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco trim tabs are oil-free and environmentally friendly.

When choosing the correct Trim Tabs for your boats application, firstly determine what size plates suit your size of boat then how much transom height clearance you have, this will determine whether you need a standard mount or edge mount plates.

FEATURES

Softer, Smoother, Safer ride.

Lenco Electric Actuators react instantaneously unlike hydraulic tabs.

Fuel savings.

Can be installed on any boat with any engine.

Easy retrofit to boats with hydraulic tabs.

Fast and easy installation.

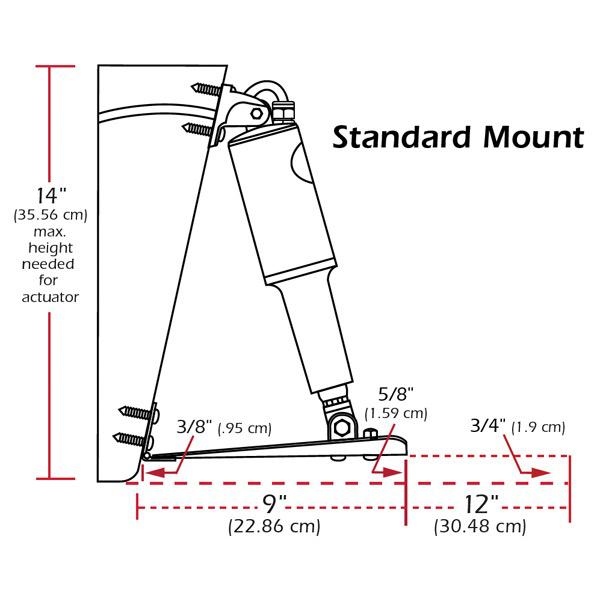

The Standard Mount Trim Tab is perfect for boats with a standard or high transom requiring a maximum height of 14" (356mm) to mount the actuator.

Standard Mount Trim Tab Kit:

2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.

2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.

2 x actuator extension wiring harness (6m) with Deutsch connectors.

1 x set of stainless steel fasteners.

2 x upper mounting bracket with gland seal.

2 x lower mounting bracket.

Lenco owner’s installation manual.

5 Year Warranty (Recreational Use).

NOTE: 24 Volt Option Available.
*All standard mount trim tabs kits are supplied in retail packages

Other Details:

Part No.	Description	Switch Kit	Volts (V)	Size L x W (in)	Size L x W (mm)	Hinge Height (mm)	Min Transom Height (mm)	Approx Boat Length (Mtr)	Finish
Without Switch Option
55430	Standard Mount Trim Tab	Not Incl	12	9 x 9	228 x 228	51	356	4.3 - 5.5	Matte
55432	Standard Mount Trim Tab	Not Incl	12	9 x 12	228 x 305	51	356	4.9 - 7.6	Matte
55434	Standard Mount Trim Tab	Not Incl	12	9 x 18	228 x 457	51	356	6.7 - 9.2	Matte
55436	Standard Mount Trim Tab	Not Incl	12	9 x 24	305 x 610	25	356	7.9 - 12.2	Matte
55440	Standard Mount Trim Tab	Not Incl	12	12 x 12	305 x 305	51	356	5.2 - 9.2	Matte
55442	Standard Mount Trim Tab	Not Incl	12	12 x 18	305 x 457	51	356	7.9 - 11.0	Matte
55444	Standard Mount Trim Tab	Not Incl	12	12 x 24	305 x 610	25	356	9.1 - 13.4	Matte
