LENCO 12V Standard Mount Trim Tab w/ Electro Polished Plates & LED Indicator Switch Kit

SKU: 55495

$1,924.00 $2,121.41

Color

NA

Size

12"(L) x 12"(W) 9"(L) x 12"(W) 9"(L) x 9"(W)

Description

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.
Lenco trim tabs make your boat ride smoother, drier, faster, more fuel efficient and increase safety, whether on a small runabout or a mega-yacht.
Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco trim tabs are oil-free and environmentally friendly.

When choosing the correct Trim Tabs for your boats application, firstly determine what size plates suit your size of boat then how much transom height clearance you have, this will determine whether you need a standard mount or edge mount plates.

FEATURES

Softer, Smoother, Safer ride.

Lenco Electric Actuators react instantaneously unlike hydraulic tabs.

Fuel savings.

Can be installed on any boat with any engine.

Easy retrofit to boats with hydraulic tabs.

Fast and easy installation.

The Standard Mount Trim Tab is perfect for boats with a standard or high transom requiring a maximum height of 14" (356mm) to mount the actuator.

LED Indicator Tactile Switch Option - Electro Polished Trim Tabs

Built-in auto retract.

12/24 volt.

LED indicator displays the exact position of your trim tabs, Auto brightness adjusting.

Self check feature.

Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit.

36" power pigtail for control box.

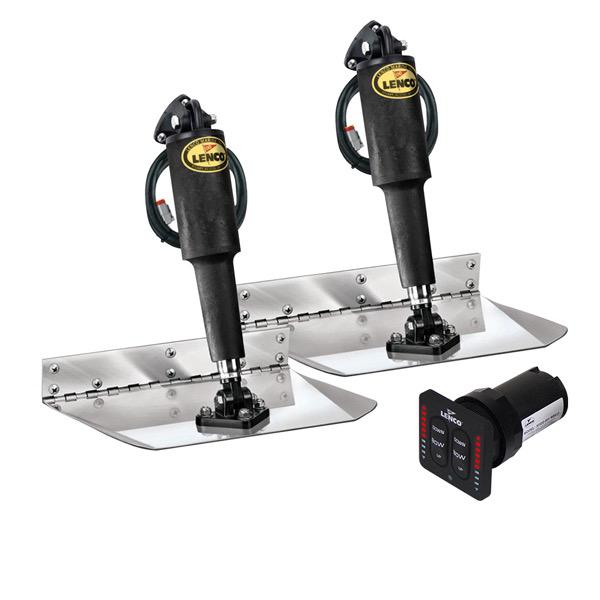

Standard Mount Trim Tab Kit:

2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.

2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.

2 x actuator extension wiring harness (6m) with Deutsch connectors.

1 x set of stainless steel fasteners.

2 x upper mounting bracket with gland seal.

2 x lower mounting bracket.

Lenco owner’s installation manual.

5 Year Warranty (Recreational Use).

NOTE: 24 Volt Option Available.
*All standard mount trim tabs kits are supplied in retail packages

Other Details:

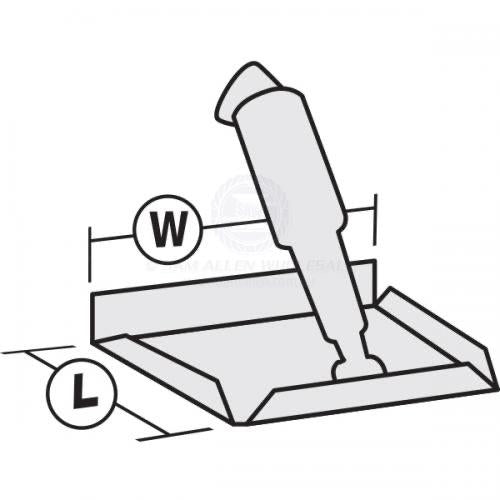

Part No.	Description	Switch Kit	Volts (V)	Size L x W (in)	Size L x W (mm)	Hinge Height (mm)	Min Transom Height (mm)	Approx Boat Length (Mtr)	Finish
LED Indicator Tactile Switch Option - Electro Polished Trim Tabs
55493	Standard Mount Trim Tab with Electro Polished Plates & LED Indicator Switch Kit	LED Indicator	12	9 x 9	228 x 228	51	356	4.3 - 5.5	Electro Polished
55494	Standard Mount Trim Tab with Electro Polished Plates & LED Indicator Switch Kit	LED Indicator	12	9 x 12	228 x 305	51	356	4.9 - 7.6	Electro Polished
55495	Standard Mount Trim Tab with Electro Polished Plates & LED Indicator Switch Kit	LED Indicator	12	12 x 12	305 x 305	51	356	5.2 - 9.2	Electro Polished
