LENCO Trim Tab Kit - Super Strong Dual Actuator

SKU: 55473
$3,699.00 $4,378.45

Color
Size
Description
Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt.
Lenco trim tabs make your boat ride smoother, drier, faster, more fuel efficient and increase safety, whether on a small runabout or a mega-yacht.
Lenco’s ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco trim tabs are oil-free and environmentally friendly.

When choosing the correct Trim Tabs for your boats application, firstly determine what size plates suit your size of boat then how much transom height clearance you have, this will determine whether you need a standard mount or edge mount plates.

FEATURES
  • Softer, Smoother, Safer ride.
  • Lenco Electric Actuators react instantaneously unlike hydraulic tabs.
  • Fuel savings.
  • Can be installed on any boat with any engine.
  • Easy retrofit to boats with hydraulic tabs.
  • Fast and easy installation.

    Super Strong design is for sport fishing, large cruising and commercial vessels. This series has a completely flat blade design
    which reduces spray giving you a clean, dry ride. Boat lengths 35’ (10.6m) to 60’ (18.3m).

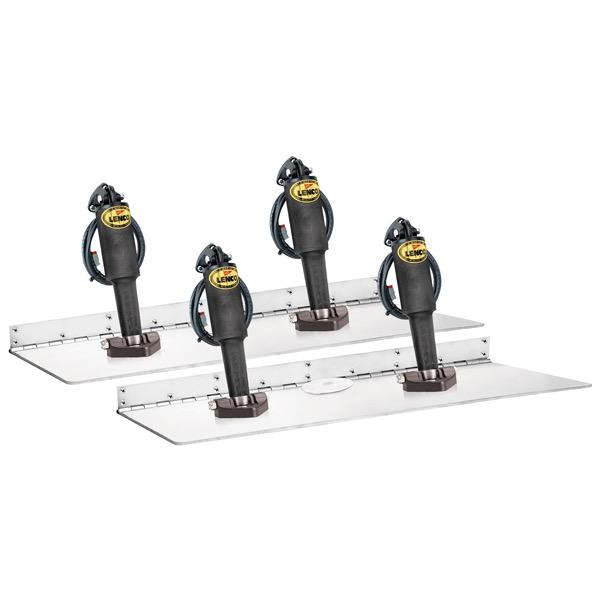

    Kit Includes:
  • 2 x Super Strong Standard Mount Plates, 7 Gauge (4.6mm thick) laser cut 304G stainless steel with 3/8" (9.5 mm) diameter hinge pin.
  • 4 x 101XD Extreme Duty Actuators with 1.8m cable and Deutsch connectors.
  • 1 x Set of stainless steel fasteners.
  • 4 x Upper mounting bracket with gland seal.
  • 4 x XD lower mounting bracket.
  • 2 x Zinc anodes.
  • Lenco owner’s installation manual.
  • Compliance: CE Certified.
  • 5 Year Warranty (Recreational Use).

    NOTE:* Switches sold separately, use 55633 switch kit.
    Actuator extension harnesses not in kits, must be purchased separately (4 required),
    20Ft or 32Ft length are available. 24 Volt Option Available.


    Other Details:

    Part No. Series Recommend
    Switch Kit
    Volts
    (V)

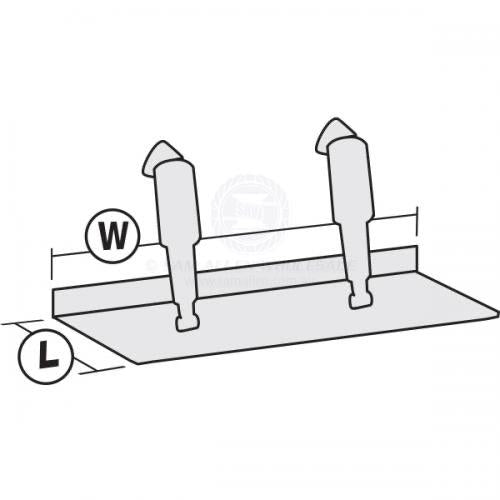

    Size
    L x W (in)
    Size
    L x W (mm)
    Hinge
    Height
    (mm)
    Min
    Transom Height
    (mm)
    Approx Boat
    Length (Mtr)
    Finish
    55478 Super Strong Dual Actuator 55633 12 16 x 24 406 x 610 50 356 10 - 15 Matte
    55476 Super Strong Dual Actuator 55633 12 16 x 30 406 x 762 50 356 12 - 18 Matte
    55472 Super Strong Dual Actuator 55633 24 16 x 30 406 x 762 50 356 12 - 18 Matte
    55473 Super Strong Dual Actuator 55633 12 16 x 36 406 x 914 50 356 13.7 - 21.3 Matte
