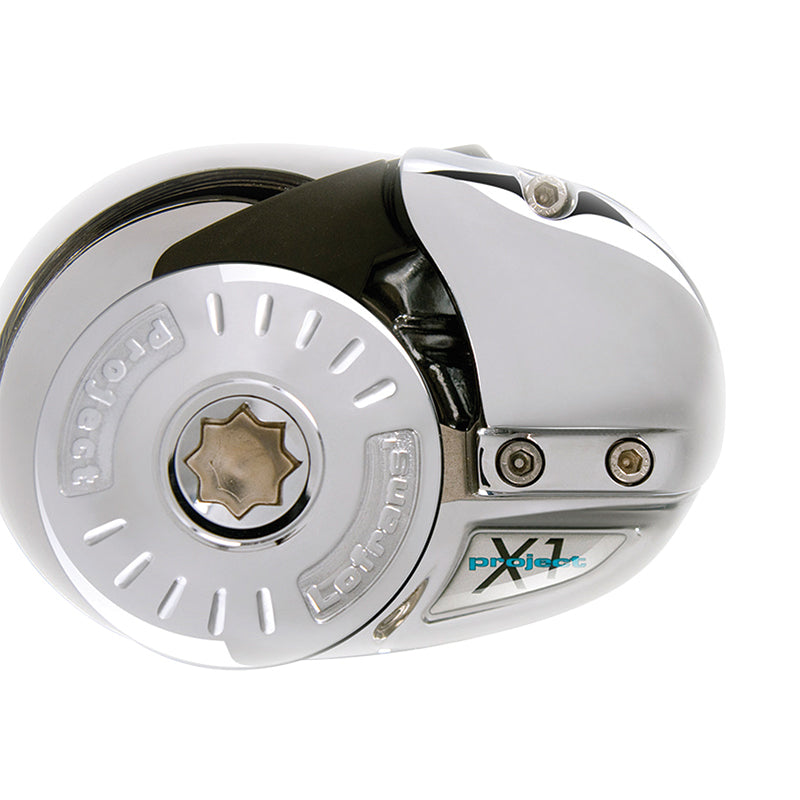

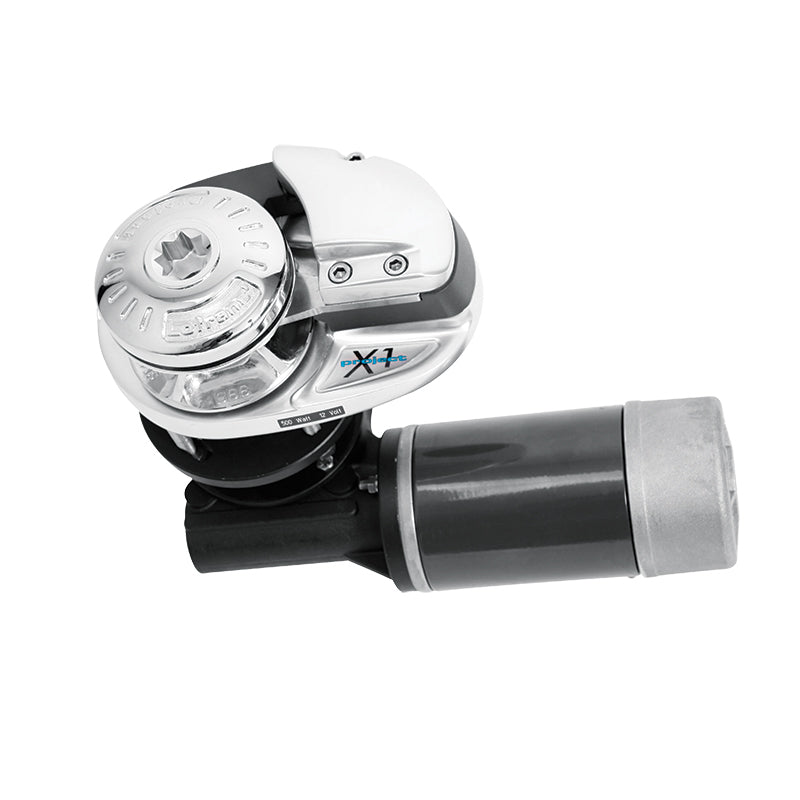

Lofrans Windlass X1 Vertical with Rope Drum or Low Profile

SKU: 472880

Rope drum
gypsy size

Windlass - X1 Low Profile /Rope Drum

Chromed Bronze - Best Suited for boats/ yachts from 20 foot to 40 foot

The standard features that you can find in every X series windlass are :

  • Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique features in the windlass market.
  • The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly
  • The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance
  • There is a sensor in the base and a magnet into the gypsy so they can be connected to a chain counter
  • Manual override so that the chain or rope can be recovered manually in case of electric function failure
  • Rope chain management by the spring loaded arm
  • IP67 rated heavy duty electric motor and with anodised marine aluminium gearbox
  • 3 year limited warranty
  • If you require or have different sized chain, please contact us with the chain size and Pitch measurement.



Chromed Bronze

Motor Size

500 watt

800 watt



12 volt

12 volt

12 volt


75 amps

80 amps

120 amps

Max. Pull

630 kg

700 kg

900 kg

Lift working load

95 kg

100 kg

125 kg

Hauling speed

23 to 26m per min

25 to 28m per min

18 to 30m per min






Standard Equipment – What comes in the box?

. complete windlass with your choice of gypsy 6mm or 8mm

.duel direction solenoid

. handle

. CD instruction manual
