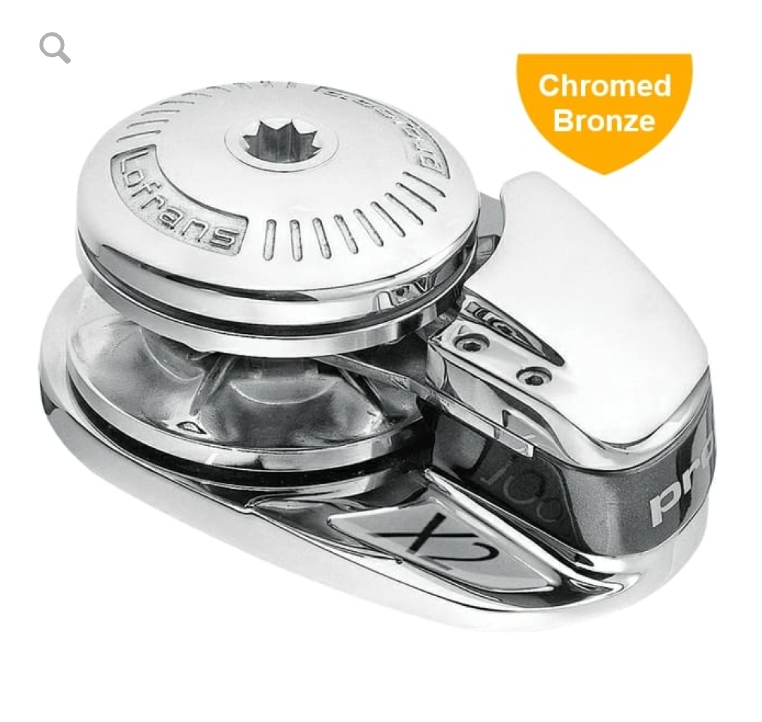

Lofrans X2 Vertical Windlass 1500W 10mm DIN766 Chain Gypsy

SKU: 187273

$3,850.00 $3,975.41

Volts

12V 24V

Description

The Lofrans X2 vertical windlass is engineered for sail and motor boats from 7.5m to 17m (25–55ft). The 1500W model is fitted with a 10mm DIN766 chain gypsy and is available in both 12V and 24V to suit your vessel’s electrical system. Features a luxury chrome bronze base and drum with independent gypsy and drum operation.

Also available in a Plus version with mirror-polished AISI 316L stainless steel for enhanced corrosion protection.

Key Specifications

Power: 1500W
Voltage: Available in 12V or 24V DC
Gypsy: 10mm DIN766 chain
Profile: Low profile or with drum
Motor protection: IP67 watertight rated
Gearbox: Anodised marine aluminium

Key Features

Luxury chrome bronze base and drum
Watertight stainless steel ball bearing in base — zero maintenance
Independent gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
Spring-loaded arm for rope/chain management
Conical disc clutch for optimal load distribution
Motor and gearbox connected via socket coupling for easy maintenance
Sensor in base + magnet in gypsy for chain counter compatibility
Manual override for chain/rope recovery in case of electrical failure

Standard Equipment

Dual direction solenoid pack
Handle
10mm DIN766 gypsy for chain
Instruction manual
3-year limited warranty

Note: For non-standard chain sizes, please contact us with your chain size and pitch measurement.
