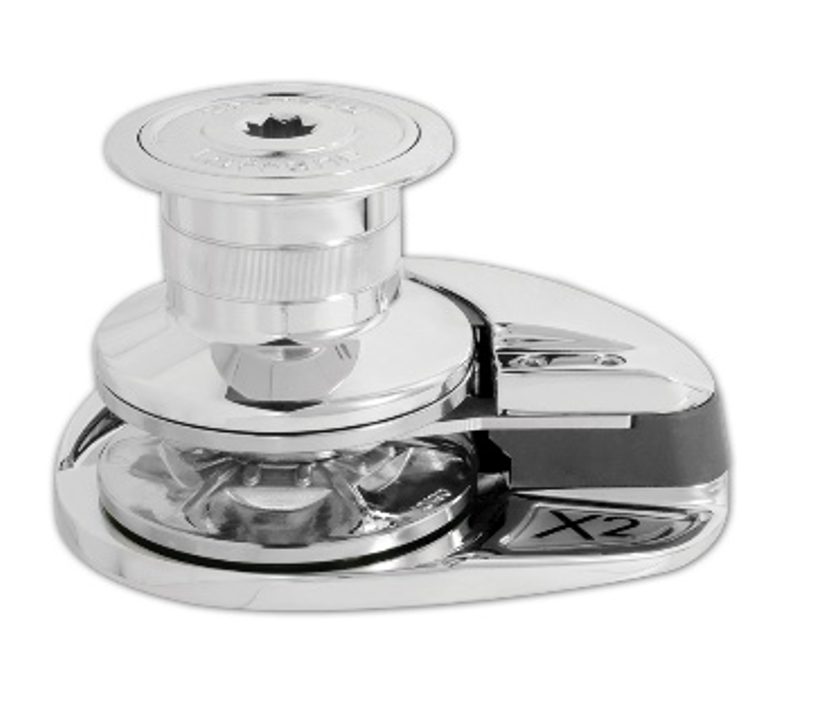

Lofrans X2 Vertical Windlass Chrome Bronze Gypsy & Drum 24V 10mm DIN766

SKU: 473227

$3,450.00 $3,542.58

Watts

1000W 1500W

Description

The Lofrans X2 Gypsy & Drum vertical windlass is engineered for sail and motor boats from 7.5m to 17m (25–55ft). This 24V model is fitted with a 10mm DIN766 chain gypsy and independent warping drum, available in 1000W and 1500W to suit larger vessel electrical systems. Features a luxury mirror-polished chrome bronze base and drum.

Also available in a Plus version with mirror-polished AISI 316L stainless steel for enhanced corrosion protection.

Key Specifications

Power: Available in 1000W and 1500W
Voltage: 24V DC
Gypsy: 10mm DIN766 chain (included)
Configuration: Gypsy & Drum (high profile)
Finish: Mirror-polished chrome bronze base and drum
Motor protection: IP67 watertight rated
Gearbox: Anodised marine aluminium (oil lubricated)

Key Features

Luxury mirror-polished chrome bronze base and drum
Independent gypsy and warping drum operation
10mm DIN766 chain gypsy included as standard
Watertight stainless steel ball bearing in base — zero maintenance
Conical disc clutch for optimal load distribution
Chain counter magnet pre-installed as standard
Spring-loaded arm for rope/chain management
Manual chain release
Manual override for chain/rope recovery in case of electrical failure
Motor and gearbox connected via socket coupling for easy maintenance
Sensor in base + magnet in gypsy for chain counter compatibility

Standard Equipment

Dual direction solenoid pack
Handle
10mm DIN766 gypsy for chain
Instruction manual
3-year limited warranty

Note: For non-standard chain sizes, please contact us with your chain size and pitch measurement.
