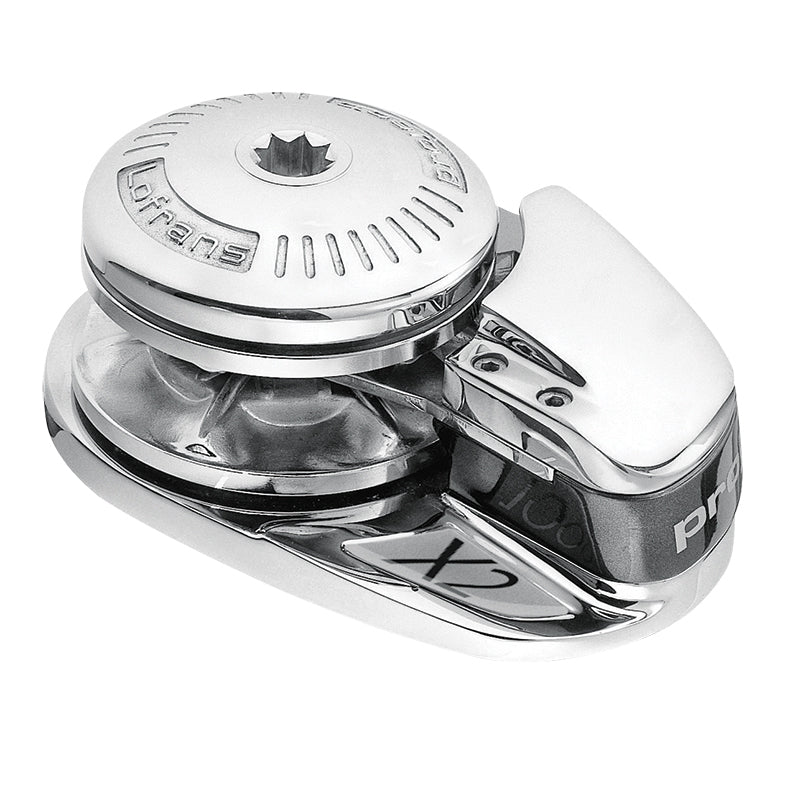

Lofrans X2 Windlass low profile / rope drum
Description
The Lofrans X2 is a low-profile vertical windlass with optional rope drum, suited to boats and yachts from 25 to 55 feet. Built from chromed bronze with an anodised marine aluminium gearbox, it combines serious pulling power with a compact footprint and zero-maintenance ball bearing base.
Available in 800W and 1000W motors, 12V and 24V, with a choice of chain gypsy configurations.
Features
- Watertight stainless steel ball bearing in the base — zero maintenance, unique in the windlass market
- Conical disc clutch on parallel-plane shaft — no keys, even load distribution
- Motor and gearbox connected by socket coupling for easy servicing
- Integrated chain counter sensor (base sensor + gypsy magnet)
- Manual override for chain/rope recovery in the event of electrical failure
- Spring-loaded arm for rope/chain management
- IP-67 rated heavy-duty electric motor
- Anodised marine aluminium gearbox
- 3-year limited warranty
Performance Specifications
| Motor Size | 800W | 1000W | 1000W |
| Voltage | 12V | 12V | 24V |
| Current Draw | 90A | 117A | 59A |
| Max Pull | 850 kg | 1,000 kg | 1,060 kg |
| Working Lift Load | 115 kg | 150 kg | 160 kg |
| Max Lift Load | 460 kg | 500 kg | 530 kg |
| Hauling Speed | 26–35 m/min | 25–45 m/min | 25–45 m/min |
| Weight | 23 kg | 24 kg | 24 kg |
What's in the Box
- Complete windlass with selected chain gypsy and motor size
- Dual-direction solenoid pack
- Handle
- Chain gypsy
- Instruction manual
Note: If you require a different chain size, please contact us with the chain size and pitch measurement before ordering.
