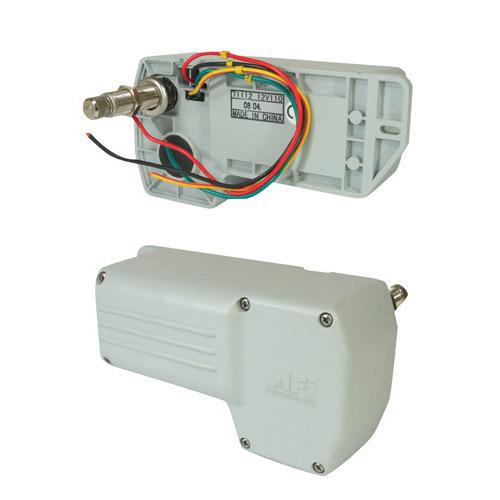

AFI 1.5 Waterproof Wiper Motor - Upto 500mm sweeps - 12V

SKU: 116088

$613.21 $689.00

Description

Fully sealed powder coated aluminium waterproof base and housing, powers up to 500mm sweeps. For suitable wiper arm combinations see page 179.
Features:

Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft

Factory pre set sweep angles of 110∞, with easy adjustment to 45∞, 60∞ or 80∞

Coast to park with adjustable right or left self parking

M16 mm diameter shaft (5/8")

Two speed motor

Sealed 150mm, 16AWG wire leads, with RF shielded circuitry

Stall torque: 125 kgf/cm; 12.3 Nm (109 in - lbs)

Stall current: 11.5-13 amps at 12V

No load current: 0.5-1.2 amps at 12V

Available in 23mm (12V only) and 50mm effective shaft lengths

3 year warranty
Other Details:
Motor Length: 197mm
Motor Depth: 70.28mm
Motor Width: 101mm
Thread Shaft Length: 50 x 16mm
Overall Shaft Length : 65mm
