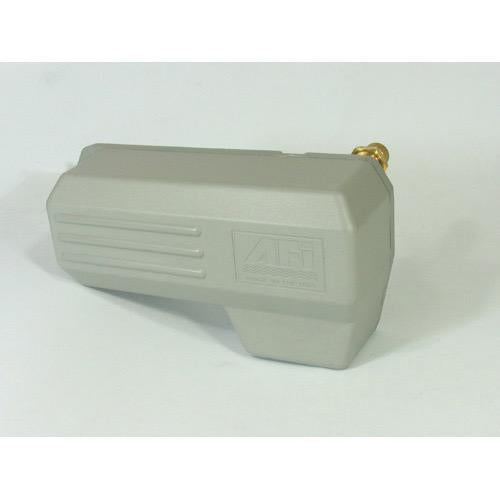

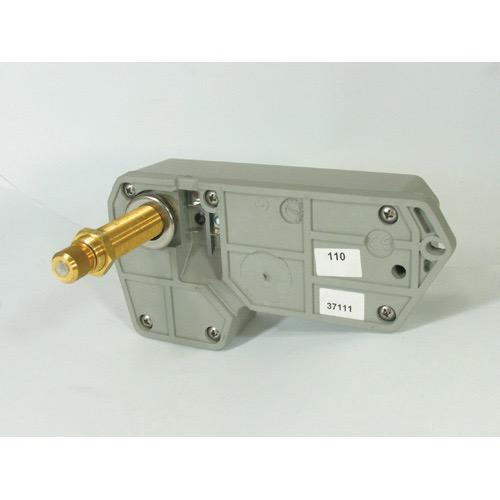

AFI 1000 Waterproof Wiper Motor

SKU: 116080

$479.71 $539.00

Color

NA

Size

12V - Overall Shaft Length: 42mm 12V - Overall Shaft Length: 63mm

Description

The 12 volt single speed motor is protected by a fully sealed waterproof housing, constructed of U.V. stabilised high temperature, high impact thermoplastic. For suitable wiper arm options see page 179.
Features:

Adjustable right or left self parking

Factory pre set sweep of 110 degrees, can be adjusted to 50, 65, or 80 degrees

Powers up to 460mm (18") Deluxe arm and 460mm (18") Deluxe blade combination at sweep sets of 80∞ or less

Powers up to 405mm (16") Deluxe arm and 405mm (16") Deluxe blade combinations at a sweep set of 110∞ or less

12 volt heavy duty motor with anti-rotation knurled drive shaft and solid brass arm drive nut

M16 Brass shaft

Coast to park with adjustable right or left self parking

RF shielded circuitry

Stall torque: 63 kgf/cm; 6.2 Nm (55 in-lbs)

Stall current: 9.8-10 amps at 12V

No load current: 0.8-1.2 amps at 12V

3 year warranty
Other Details:

BLA Code	116080	116082
Volts	12mm
Motor Length	168.4mm
Motor Depth	50.8mm
Motor Width	83.8mm
Thread Shaft Length
