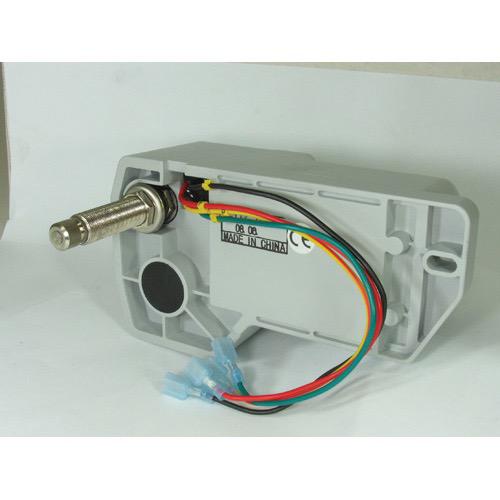

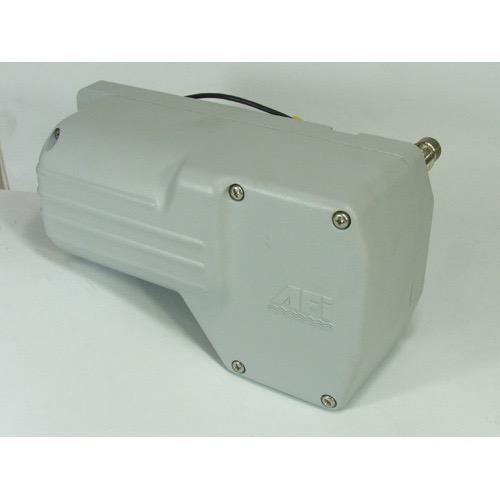

AFI 2.5 Waterproof Wiper Motor - Upto 660mm sweeps

SKU: 116096

$684.41 $769.00

Description

Fully sealed powder coated aluminium waterproof base and housing, powers up to 660mm sweeps. For suitable wiper arm combinations see page 179.
Features:

Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft

M16 Brass shaft

Factory pre-set sweep angles of 110∞, with easy adjustment to 45∞, 60∞ or 80∞

Two speed motor

Coast to park with adjustable right or left self parking

Sealed 150mm 16AWG wire leads, with RF shielded circuitry

Stall torque: 160 kgf/cm; 15.7 Nm (139 in ñ lbs)

Stall current: 9 ñ 10.5 amps at 12V

No load current: 1 ñ 1.6 amps at 12V

3 year warranty
Other Details:
Motor Length: 201mm
Motor Depth: 76.8mm
Motor Width: 108mm
Thread Shaft Length: 50mm
Overall Shaft Length : 65mm
