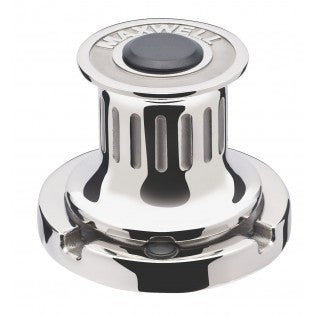

VETUS MAXWELL WINCH 1000 VC 12 V 100TDC, MAXIMUM ROPE DIAMETER 14 MM, 1000 W

or 4 interest free payments of $422.25

Regular price $1,689.00

Available: In stock
The stainless steel fluted capstan VC Series is designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.  VOLTAGE (V), 12 V  MOTOR (W), 1000  MAXIMUM PULL/LIFT (KG), 700  STATIC HOLD (KG), -  LINE SPEED (NORMAL...
Quantity

The stainless steel fluted capstan VC Series is designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.

VOLTAGE (V), 12 V

MOTOR (W), 1000

MAXIMUM PULL/LIFT (KG), 700

STATIC HOLD (KG), -

LINE SPEED (NORMAL WORKING) (M), 20 m/min

NET WEIGHT, ELECTRIC (KG), 18

HYDRAULIC PRESSURE (BAR), -

HYDRAULIC FLOW (LITRES/MINUTE), -

NET WEIGHT, HYDRAULIC (KG), -

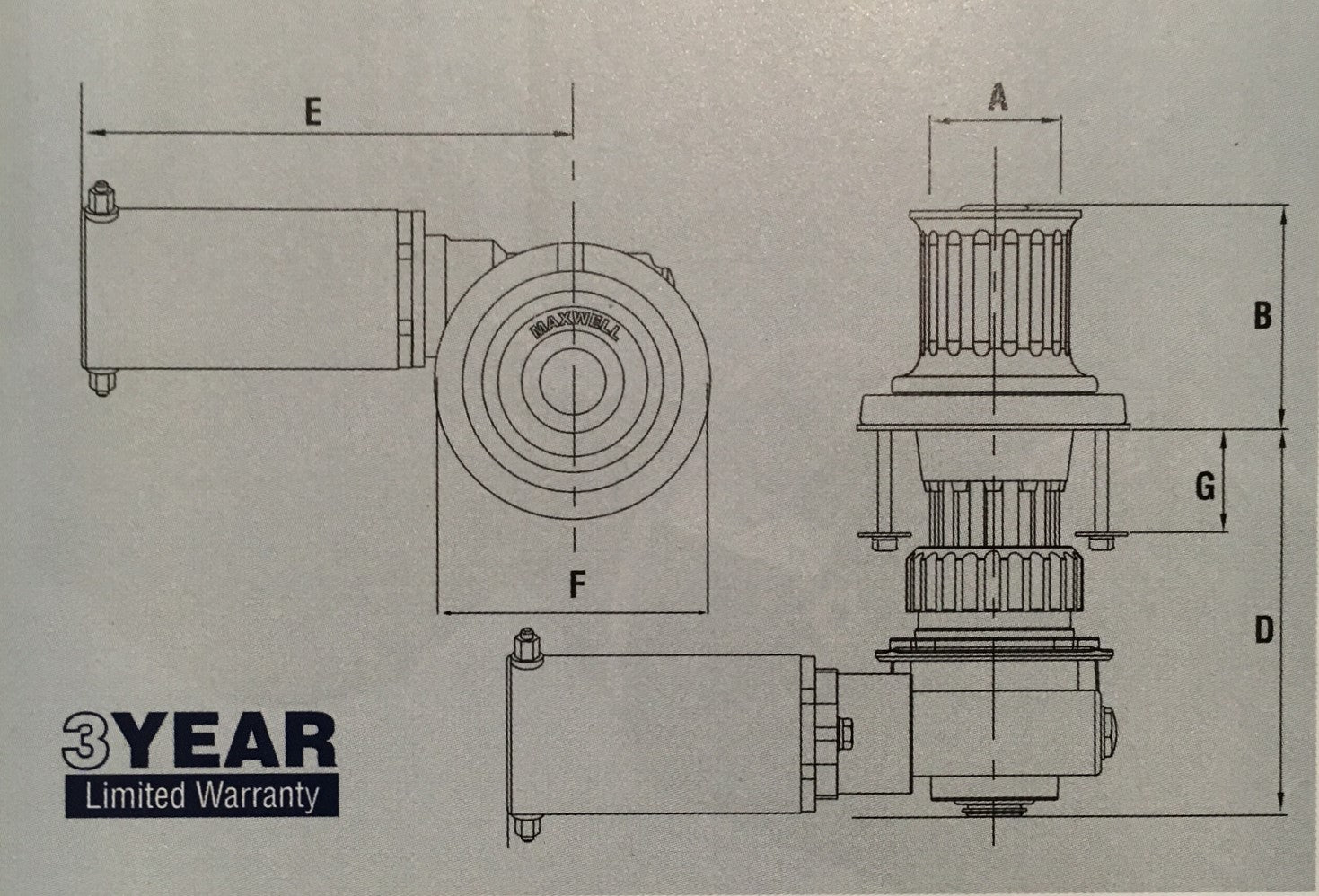

A (MM), 80

B (MM), 122,5

E (MM), 272

F (MM), 160

G (STANDARD DECK CLEARANCE) (MM), 100

G (EXTRA DECK CLEARANCE) (MM), 150

D (STANDARD DECK CLEARANCE) (MM), 252

Vendor:

bosunsboat

SKU:

P102787

Weight:

21.0 kg
