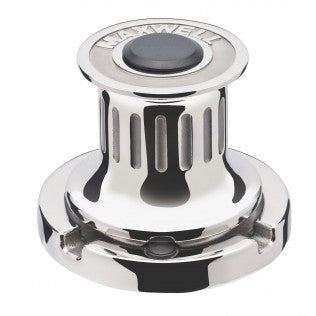

MAXWELL 1000 VC 24 V 100TDC, MAXIMUM ROPE DIAMETER 14 MM, 1000 W

or 4 interest free payments of $387.25

Regular price $1,549.00

Available: In stock
Voltage (V) 24 V Motor (W) 1000 Maximum pull/lift (kg) 700 Static hold (kg) - Line speed (normal working) (m) 20 m/min Net weight, electric (kg) 18 Hydraulic pressure (bar) - Hydraulic flow (litres/minute) - Net weight, hydraulic (kg) -...
Quantity
SKU: P102788 Categories: ,
Voltage (V) 24 V
Motor (W) 1000
Maximum pull/lift (kg) 700
Static hold (kg) -
Line speed (normal working) (m) 20 m/min
Net weight, electric (kg) 18
Hydraulic pressure (bar) -
Hydraulic flow (litres/minute) -
Net weight, hydraulic (kg) -

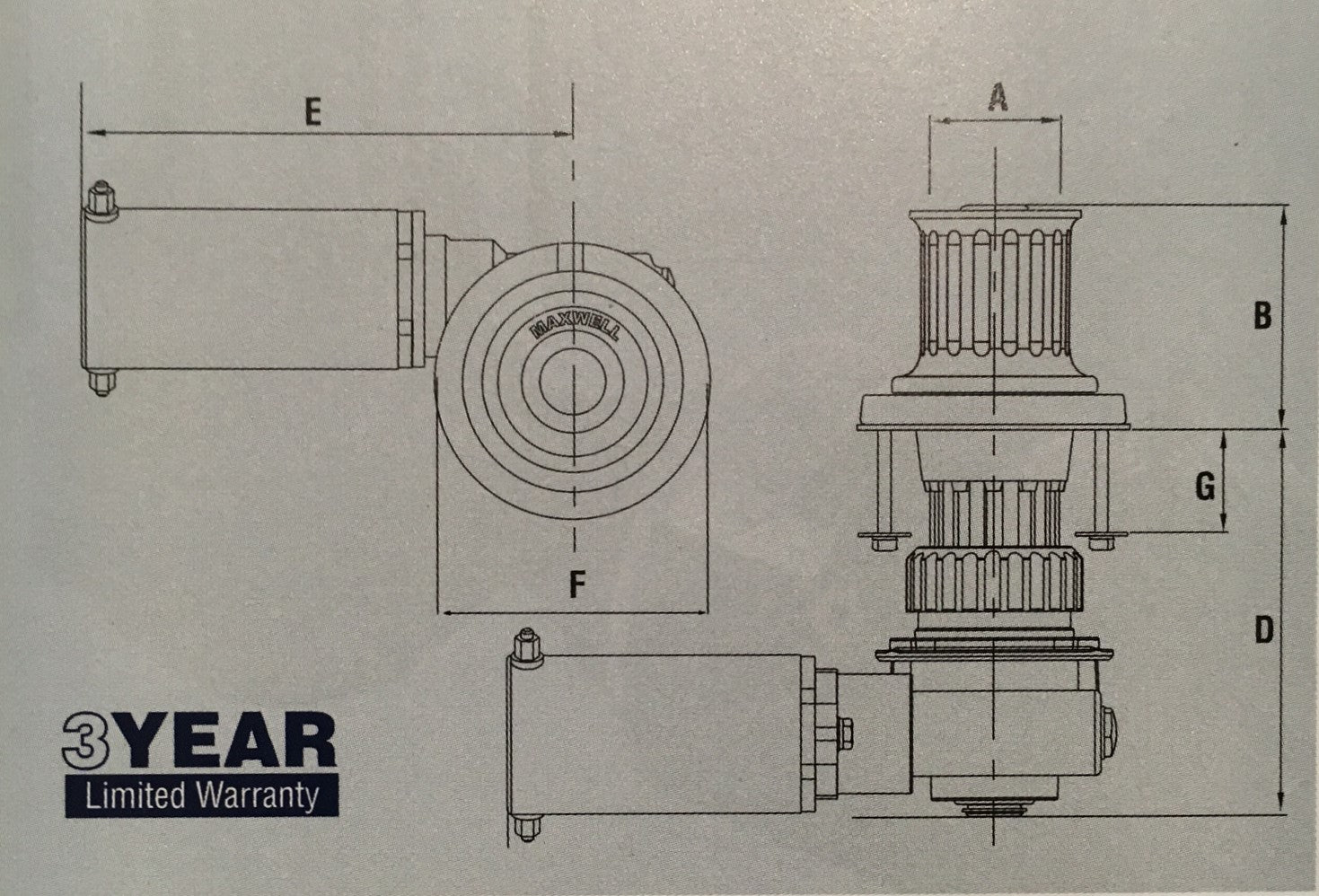

A (mm) 80
B (mm) 122,5
E (mm) 272
F (mm) 160
G (standard deck clearance) (mm) 100
G (extra deck clearance) (mm) 150
D (standard deck clearance) (mm) 252
Vendor:

bosunsboat

SKU:

P102788

Weight:

18.0 kg
