VETUS MAXWELL WINCH 500 VC 12 V 50TDC, MAXIMUM ROPE DIAMETER 12 MM, 600 W

or 4 interest free payments of $307.25

Regular price $1,229.00

Available: In stock
This stainless steel (AISI 316) fluted capstan is designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.    VOLTAGE (V), 12 V  MOTOR (W), 600  MAXIMUM PULL/LIFT (KG), 300  STATIC HOLD (KG), - ...
Quantity

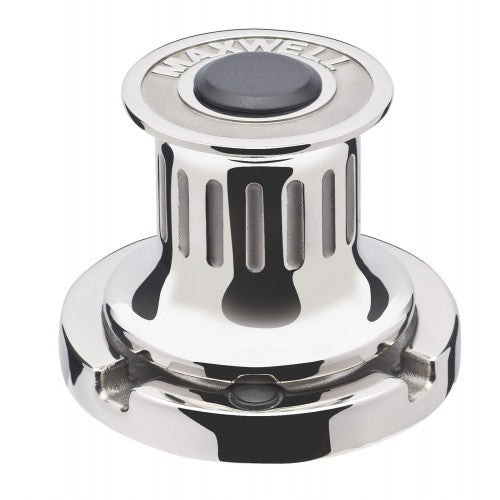

This stainless steel (AISI 316) fluted capstan is designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.



VOLTAGE (V), 12 V

MOTOR (W), 600

MAXIMUM PULL/LIFT (KG), 300

STATIC HOLD (KG), -

LINE SPEED (NORMAL WORKING) (M), 18 m/min

NET WEIGHT, ELECTRIC (KG), 10

HYDRAULIC PRESSURE (BAR), -

HYDRAULIC FLOW (LITRES/MINUTE), -

NET WEIGHT, HYDRAULIC (KG), -

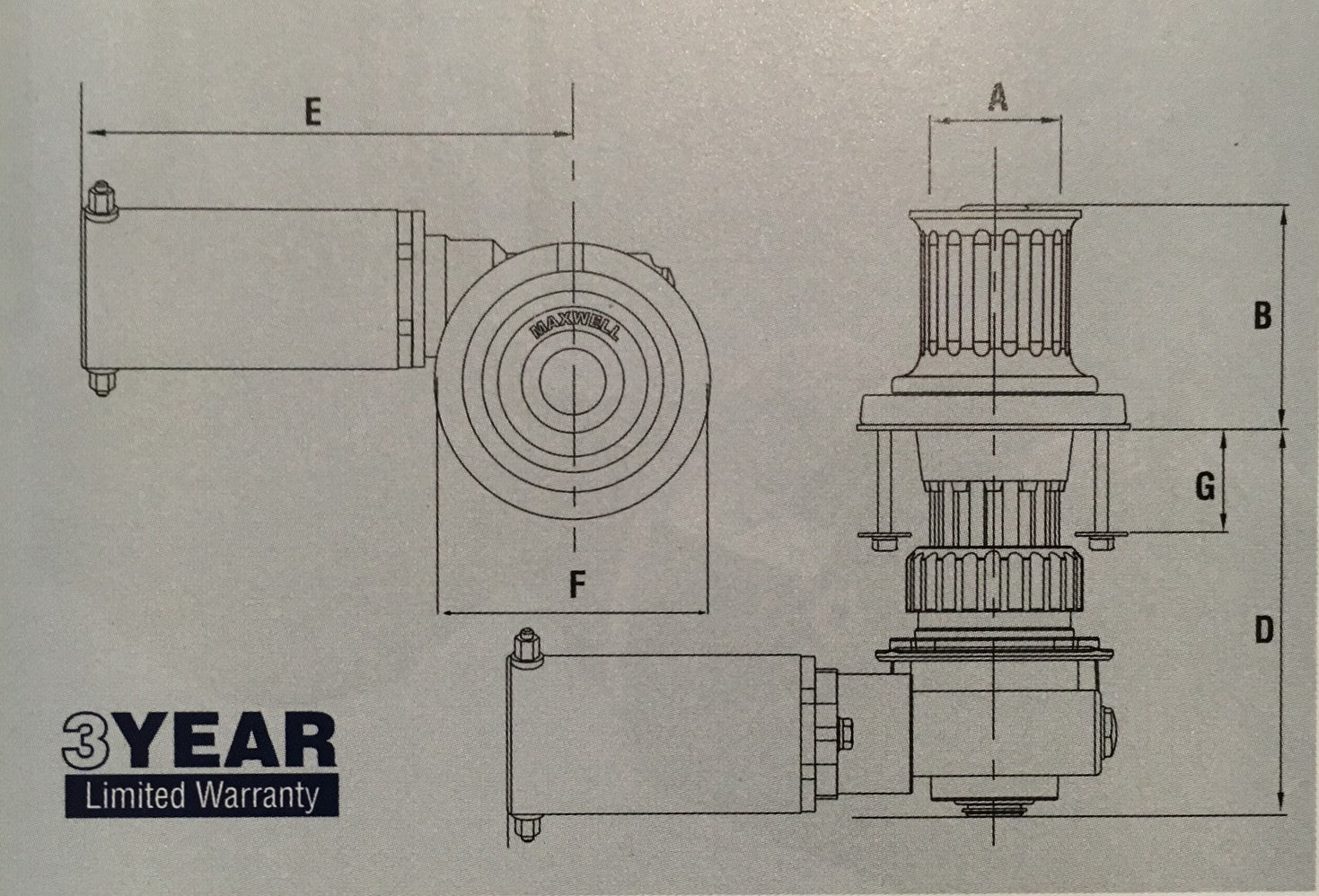

A (MM), 65

B (MM), 106

E (MM), 245

F (MM), 132,5

G (STANDARD DECK CLEARANCE) (MM), 57

G (EXTRA DECK CLEARANCE) (MM), -

D (STANDARD DECK CLEARANCE) (MM), 173



Vendor:

bosunsboat

SKU:

P100455

Weight:

21.0 kg
