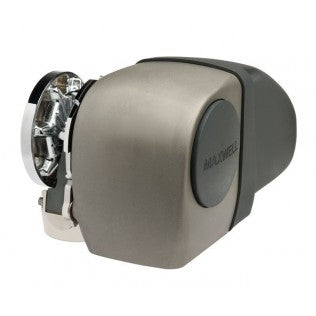

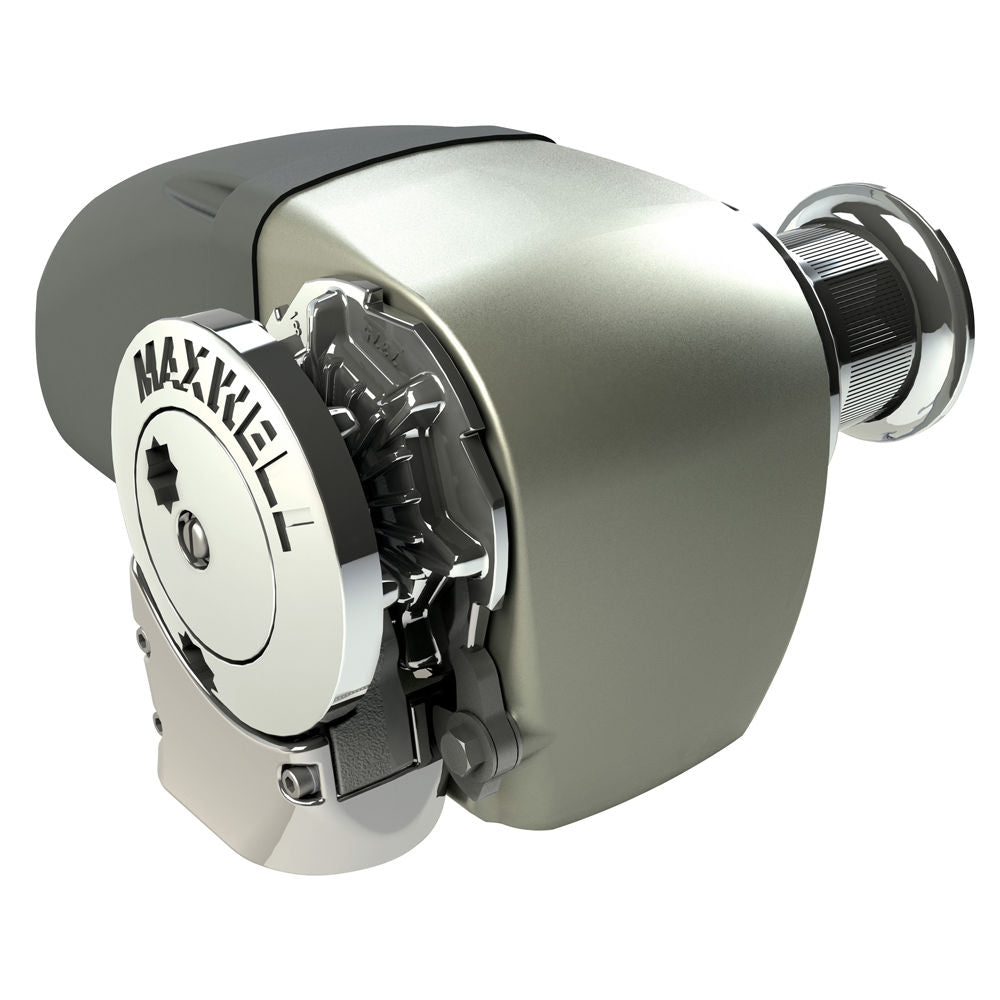

MAXWELL HRC10-10, CAPSTAN, CHAINWHEEL, 10 MM CHAIN, 16 MM ROPE

SKU: P100242
$3,055.00

Style
Description

This fully automatic rope/chain anchor windlass meets the demands for use on vessels up to 16 metres, which requires an above deck installation system.

The HRC10 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope/chain anchor winches. The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 8 mm (5/16”) and 10 mm (3/8”) short link chain and 14 mm (9/16”) and 16 mm (5/8”) three strand or 8-brait (plait) rope.

VOLTAGE (V), 12v, 24v

MOTOR (W), -

MAXIMUM PULL/LIFT (KG), 850

STATIC HOLD (KG), 1500

CHAIN SHORT LINK (MM), 10

NET WEIGHT, ELECTRIC (KG), - 20

HYDRAULIC PRESSURE (BAR), 138

HYDRAULIC FLOW (LITRES/MINUTE), 20

NET WEIGHT, HYDRAULIC (KG), 13

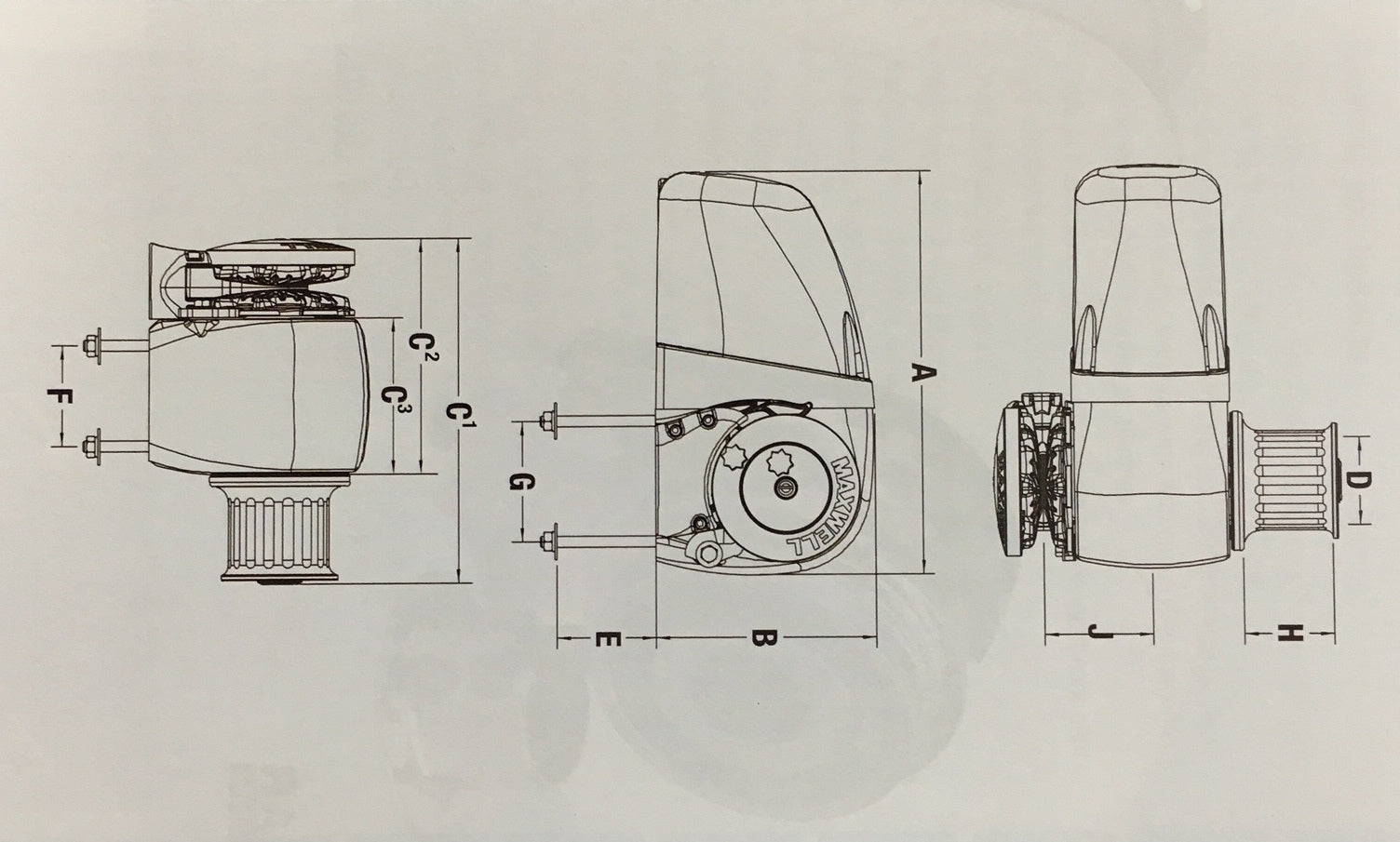

A (MM), 369

B (MM), 199

D (MM), 80

F (MM), 92

J (MM), 99

ROPE SIZE (NYLON) (MM), 16

CHAIN SPEED (ANCHOR RETRIEVAL) (M), 24 m/min

ROPE SPEED (ANCHOR RETRIEVAL) (M), 20 m/min

H (MM), 80

C1 (MM), 316

C2 (MM), 225

G (MM), 110

E (STANDARD DECK CLEARANCE) (MM), 90

C3 (MM), 140
