MAXWELL HRC10-8, CAPSTAN, CHAINWHEEL FOR 8 MM CHAIN, 14-16 MM ROPE
Description

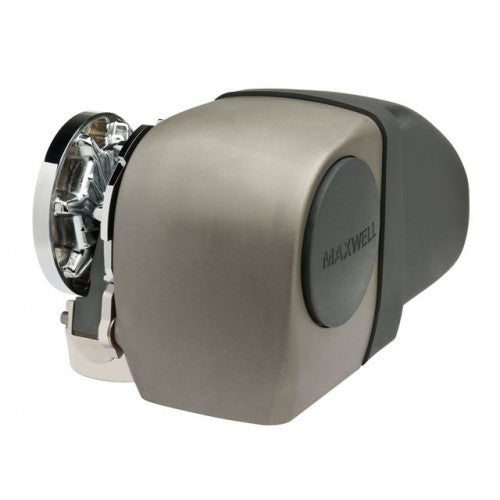

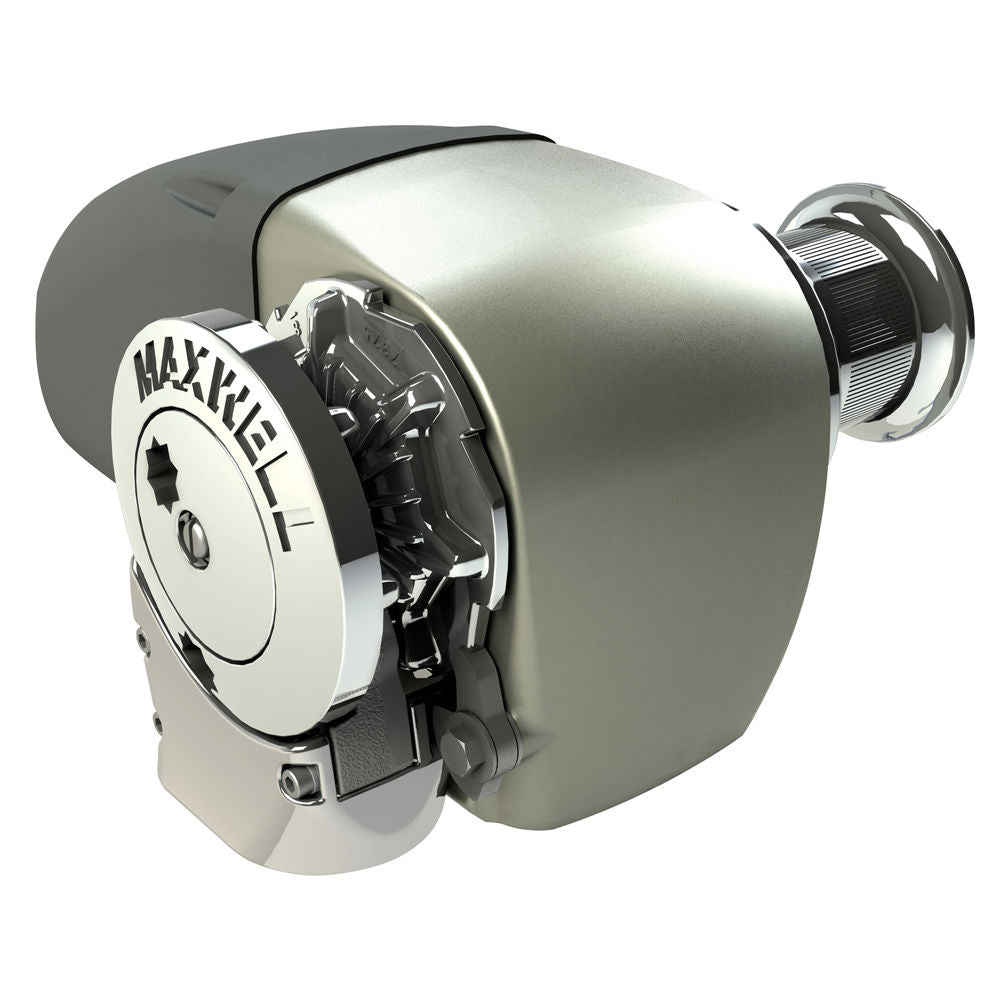

This fully automatic rope/chain anchor windlass meets the demands for use on vessels up to 16 metres, which requires an above deck installation system.
The HRC10 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope/chain anchor winches. The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 8 mm (5/16”) and 10 mm (3/8”) short link chain and 14 mm (9/16”) and 16 mm (5/8”) three strand or 8-brait (plait) rope.
VOLTAGE (V), 12v or 24v
MOTOR (W), - 1000W
MAXIMUM PULL/LIFT (KG), 700
STATIC HOLD (KG), 1500
CHAIN SHORT LINK (MM), 8
HYDRAULIC PRESSURE (BAR), 138
HYDRAULIC FLOW (LITRES/MINUTE), 20
NET WEIGHT, HYDRAULIC (KG), 13

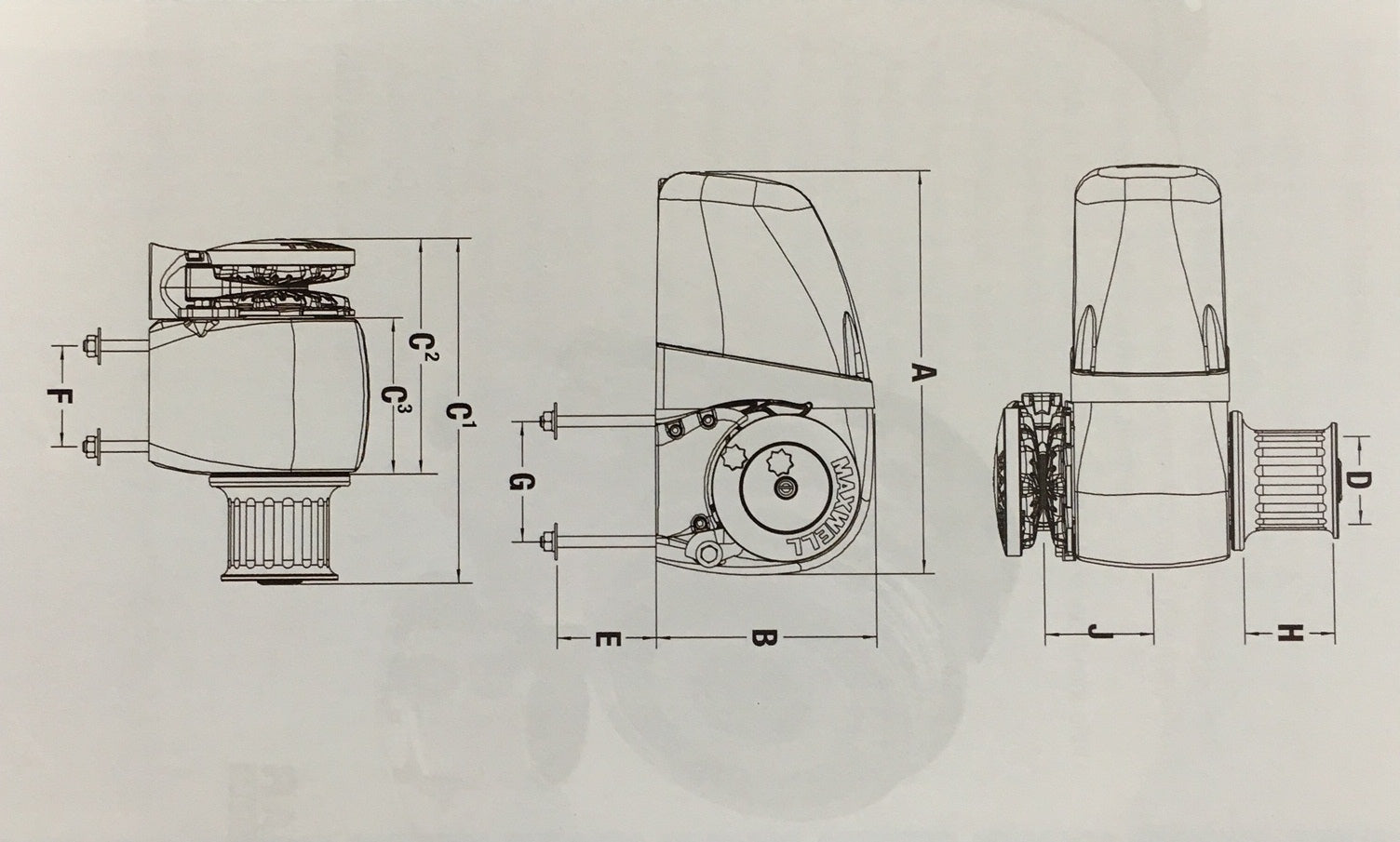

A (MM), 369
B (MM), 199
D (MM), 80
F (MM), 92
J (MM), 99
ROPE SIZE (NYLON) (MM), 14-16
CHAIN SPEED (ANCHOR RETRIEVAL) (M), 24 m/min
ROPE SPEED (ANCHOR RETRIEVAL) (M), 20 m/min
H (MM), 80
C1 (MM), 316
C2 (MM), 225
G (MM), 110
E (STANDARD DECK CLEARANCE) (MM), 90
C3 (MM), 140
