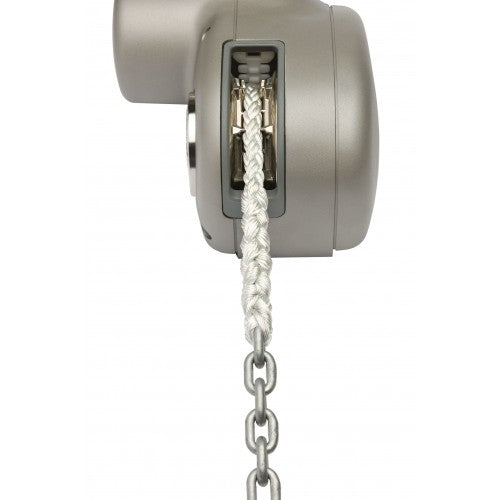

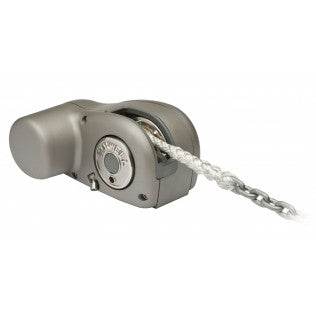

Maxwell HRCFF-8 12 Volt Horizontal Anchor Winch / Windlass - 600W Motor - Suits Most Boats to 13m
Ok, the stats on this winch are as follows;
12 Volt Motor. 600Watt
Max Pull lift is 400Kgs
Static Hold is 700Kgs (The maxium the winch can hold)
Chain. You can use 6,7 or 8mm short link chain.
Rope Size: 14mm
Net weight: 11.5kgs (approx)

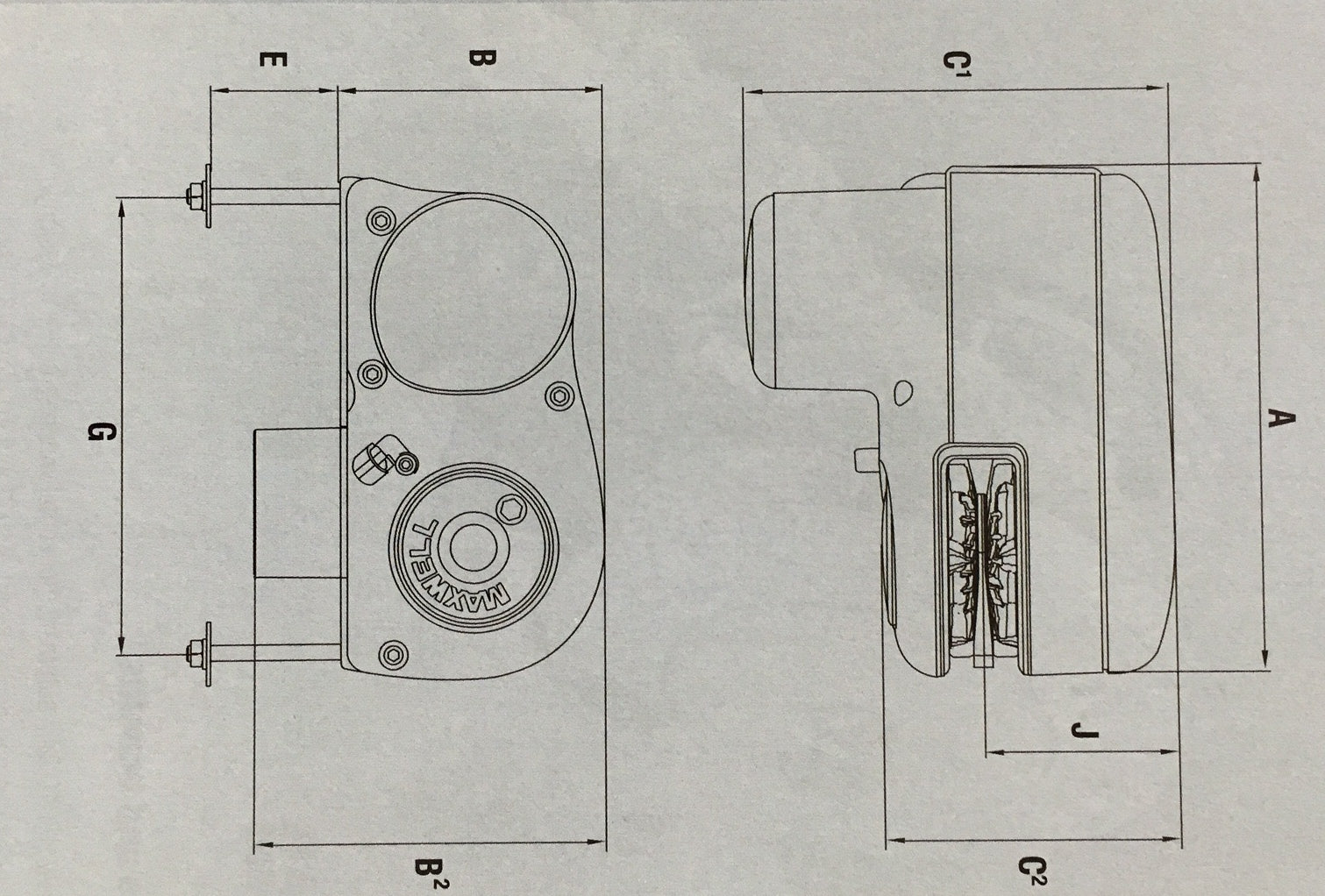

Dimensions: Click the on the drawing pic.
A = 256mm B=132mm E=65mm J=96.4
C1 = 214mm B2=176mm C2=147mm G=230mm
Line Speed (anchor retrieval) m = 33m/min
