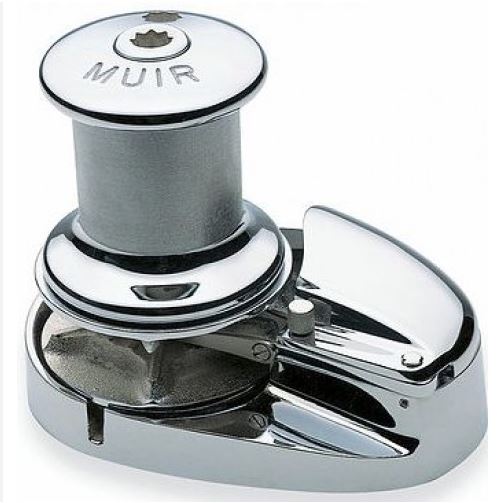

MUIR STORM VRC3500 12V OR 24v WINCH with Captsan 10mm Chain
Description
Vessel Length:15-24m (48-77ft)
Power Supply: (DC)12/24V
Motor: (Watts)1500
Hydraulic Pressure: 10MPa (1450PSI)
Hydraulic Flow: 28L/min (7.5gal/min)
Max Load:1590kg (3500ft)
Work Load: 397kg (875lb)
Amps Work Load:185/90
Max Line Speed: 13.5m/min (44ft/min)
Chain Size: 10mm (3/8"), 13mm (1/2"), 8mm (5/16")
Rope Size: 14mm (9/16"), 16mm (5/8")
Net Weight: DC VR 42kg (92lb) VRC 46kg (101lb), HYD VE 38kg (84lb) VRC 42kg (92lb)
Manual Operation MORS (opt)
Features:
- Rope chain combination gypsy
- Quick release integrated swivel chain pipe cover
- Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
- Heavy duty marine grade, dual direction motor in 12 & 24V DC, hydraulic & AC
- Polished Stainless steel components
- Independent gypsy and capstan operation
- Capstan model features heavy duty fluted finish for increased grip
- Self aligning gearbox/adaptor
- Stainless steel shaft
- Cone clutch/brake
- Stainless steel mounting studs
- Shaft seal
- Lubricating grease nipple
- Clutch release handle
- Rope Chain Management System (RCMS)
Options:
- Round base VR/VRC model (chain only)
- AC electric motor available
- Mirror image models available
- Manual Override System (MORS)
- Traditional polished bronze finish
- Extra deck clearance kit for any deck thickness
- Full range of accessories including chain, rope, chain stoppers, snubber kits & devil claws
- Electric & hydraulic operating options & accessories
- Auto anchor – chain counter
