OceanLED Underwater Light - X-Series

SKU: 125337

$969.95 $1,139.00

Color

X16 Colours X16 Midnight Blue X16 Ultra White X8 Colours X8 Midnight Blue X8 Ultra White X4 Midnight Blue

Size

NA

Description

The OceanLED X-Series combines brightness with affordability. Whether cruising or fishing, the X16 gives stunning performance allowing you to enjoy more time on the water with family and friends.

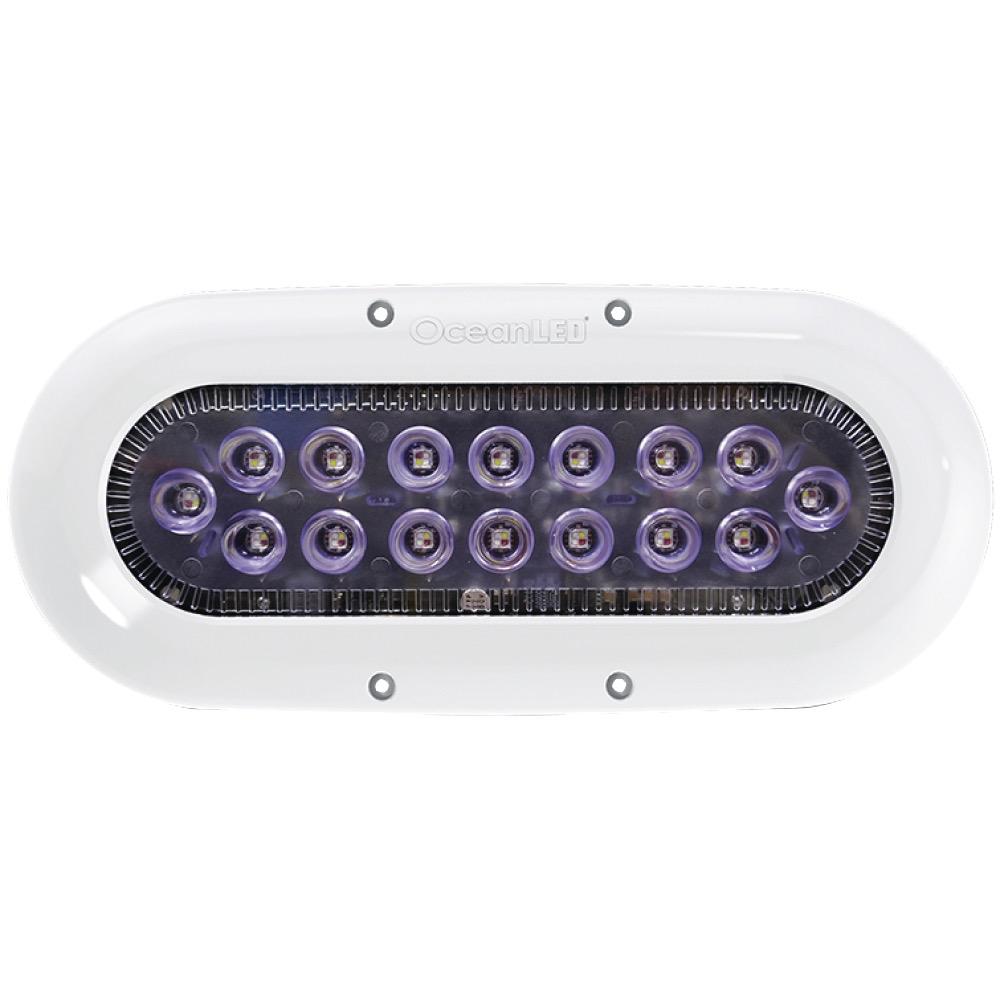

The X16 packs a mighty 5,800 fixture Lumens into its low profile design and utilises focused optics to produce a 60° circular beam from each LED providing great water penetration, illuminating a large area.

Choose either a single colour version from either Midnight Blue or Ultra White or pick our Colours option where you can select any colour you want from the RGBW spectrum. You can toggle between the colours or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

Features:

60° Beam Angle - A wide-angled, focused beam lights up a large area of the water

Compact and simple design - Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light

Simple to install - Installation needs only a small, 12mm hole in the hull to feed the cable through and 3 screws in place. No bonding required

Easy to clean - Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours of scrubbing each time you use it

Fish-Strobe Mode - Exceptionally bright, randomised strobing of the light is proven to attract more fish and catch more bait

Active Thermal Control - ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn o the fixture completely.

Colours Control - Colours models are compatible with OceanDMX for full control, interactivity and colour customisation. Alternatively, cycle smoothly between red, green, blue and white with a standard DC switch

Other Details:

BLA Code	Description	Lumens	Fixture Lumens	Volts	Current*		Approx. Light Penetration (avg. water quality)	Approx. Light Penetration (perfect water quality)	Driver Type
BLA Code	Description	Lumens	Fixture Lumens	Volts	12V	24V	Approx. Light Penetration (avg. water quality)	Approx. Light Penetration (perfect water quality)	Driver Type
125331	X4 Midnight Blue	1450	1150	9-32V	0.8A	0.4A	6m (20ft)	up to 13m + (40ft)	Internal
125332	X8 Ultra White	2900	2300	9-32V	1.65A	0.75A	8m (26ft)	Up to 21m + (72ft)	Internal
125333	X8 Midnight Blue	2900	2300	9-32V	1.65A	0.75A	8m (26ft)	Up to 21m + (72ft)	Internal
125334	X8 Colours	2900	2300	9-32V	1.65A	0.75A	8m (26ft)	Up to 21m + (72ft)	Internal
125335	X16 Ultra White	5800	4500	9-32V	3.2A	1.5A	12m (40ft)	Up to 30m + (100ft)	Internal
125336	X16 Midnight Blue	5800	4500	9-32V	3.2A	1.5A	12m (40ft)	Up to 30m + (100ft)	Internal
125337	X16 Colours	5800	4500	9-32V	3.2A	1.5A	12m (40ft)	Up to 30m + (100ft)	Internal

*(Amperage draw for Colours models vary by the colour selected, this is the maximum)

Please Note: Fixture Lumens rating is a measurement of total light output from a finished lighting fixture. This measurement can only be obtained from either a Goniophotometer or an integrating sphere. Fixture Lumens is the most reliable, professional measurement of light output. OceanLED has heavily invested in these measurement apparatus and has had all its data verified by the Lighting Association of Great Britain.
