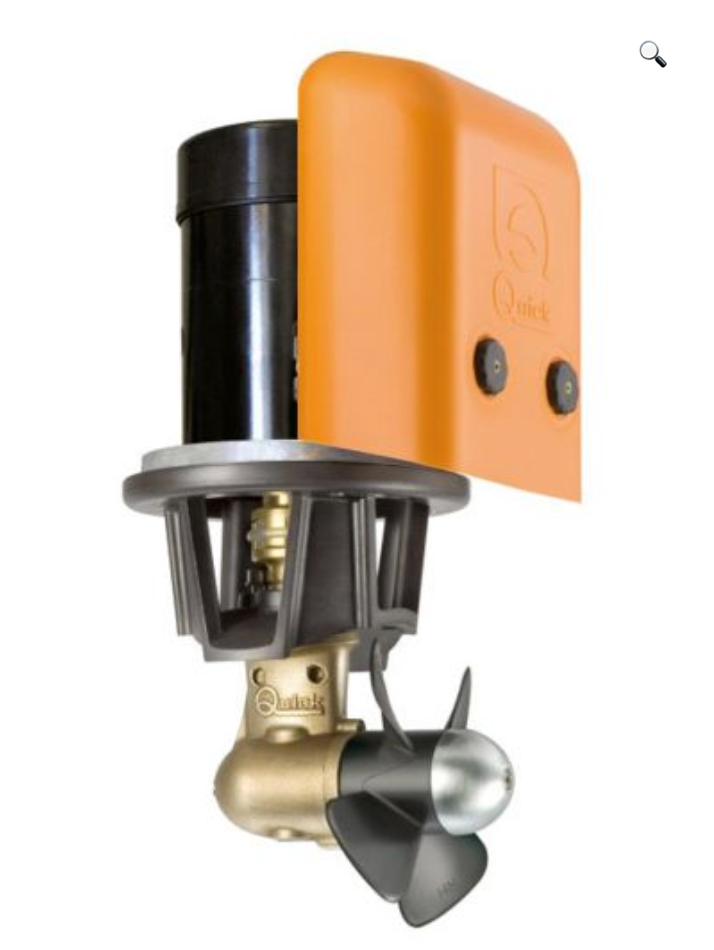

Quick BTQ 140-40 Bow Thruster 40kgf 12V (140mm Tunnel)

SKU: FGBT14040120A00

$2,999.00 $3,113.59

Description

The Quick BTQ 140-40 is a single propeller DC bow thruster delivering 40kgf (88.2lb) of thrust, designed for vessels from 7 to 10 metres (23–33ft). Built from high-quality composite material throughout, it offers outstanding durability and corrosion resistance in demanding marine environments. An exclusive Quick elastic coupling optimises motor-to-gearbox alignment, absorbing impulses and protecting the operating system. The four-blade composite propeller delivers maximum thrust with reduced current draw, and the bronze propeller gearleg features a hydrodynamic profile that minimises turbulence in both thrust directions. Overheating protection is managed via the touch panel or joystick panel software — no thermal sensor required. Requires a 140mm diameter tunnel.

Note: Tunnel, controller, control cable, fuse, and fuse holder are required for installation and must be purchased separately.

Key Features

40kgf (88.2lb) thrust — suits vessels 7–10m (23–33ft)
12V DC, 2.2kW motor with IP66 protection
High-quality composite construction throughout
Bronze gearbox with hydrodynamic profile gearleg for reduced turbulence
Exclusive Quick elastic coupling for motor-gearbox alignment and impulse absorption
Four-blade composite propeller for maximum thrust and reduced current draw
Independent zinc anode — replaceable without gearbox disassembly
Software-managed overheating protection via touch or joystick panel
TMS remote circuit breaker system compatible
3-year warranty
Genuine Quick Italian manufacture

Specifications

Model: BTQ 140-40
SKU: FGBT14040120A00
Thrust: 40kgf (88.2lb)
Voltage: 12V DC
Motor Power: 2.2kW
Tunnel Diameter: 140mm (5.51")
Tunnel Length: 750mm (29.52")
Propulsion: Single 4-blade composite propeller
Gearbox: Bronze with hydrodynamic profile
Motor Protection: IP66
Recommended Fuse: 300A
Suitable Vessel Length: 7–10m (23–33ft)
Warranty: 3 years
Origin: Genuine Quick Italian manufacture

Tunnel, controller, control cable, fuse, and fuse holder sold separately.
