Quick Dylan DH4 Vertical Windlass 1700W 12/24V 10mm or 12mm (Gypsy and Drum)

SKU: FSDH1712D010A00

$6,299.00

CHAIN SIZE

10MM 12MM

VOLTS

12V 24V

Description

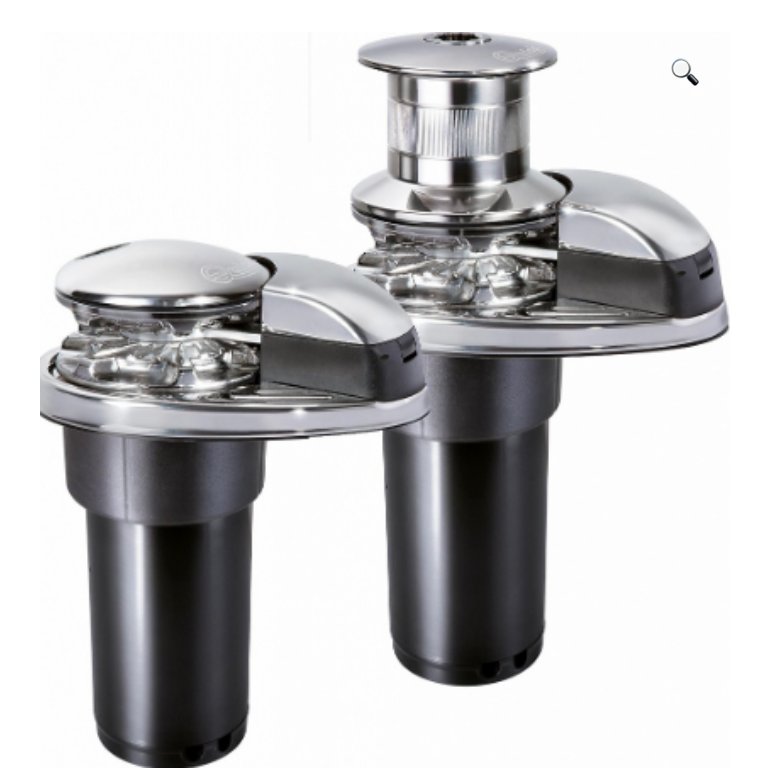

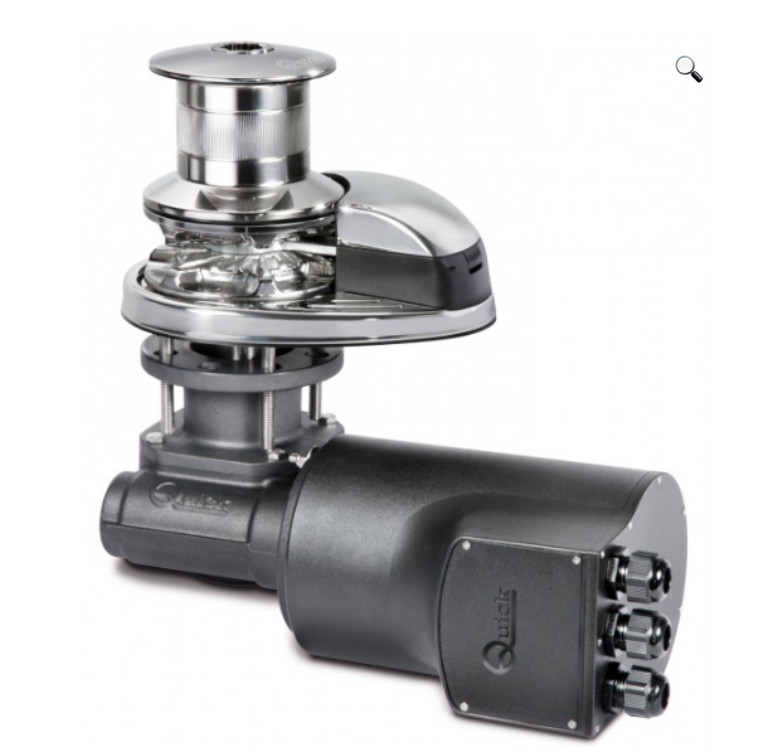

The Quick Dylan DH4 1712D is a premium Italian-engineered vertical anchor windlass designed for vessels from 14 to 18 metres (46–59ft). Running on 12V DC, it delivers 1700W of pulling power with a 10mm chain gypsy and integrated warping drum for independent rope retrieval. The vertical motor configuration makes it ideal for boats with limited under-deck space.

Key Features

12V or 24V DC operation
1700W high-output watertight motor
10mm or 12mm chain gypsy
Integrated warping drum for independent rope retrieval
Vertical motor configuration — ideal for limited under-deck space
Easy-open inspection lid for straightforward maintenance
Integrated sensor and magnet for chain counter compatibility
Manual free-fall system for reliable anchor deployment
AISI 316 stainless steel base with anodised aluminium gearbox
Suits deck thickness 30–70mm (custom shafts available for thicker decks)
Suits vessels 14–18m (46–59ft)
CE approved

Specifications

Model: FSDH1712D010A00
Series: Quick Dylan DH4
Voltage: 12V or 24V DC
Power: 1700W
Gypsy Size: 10mm or 12mm
Drum: Yes — warping drum included
Motor Protection: Watertight
Construction: AISI 316 stainless steel base, anodised aluminium gearbox
Deck Thickness: 30–70mm standard (custom shafts available)
Contents: Windlass, contactor unit, aluminium handle, inspection lid
Suitable Vessel Length: 14–18m (46–59ft)
