Harrold Marine

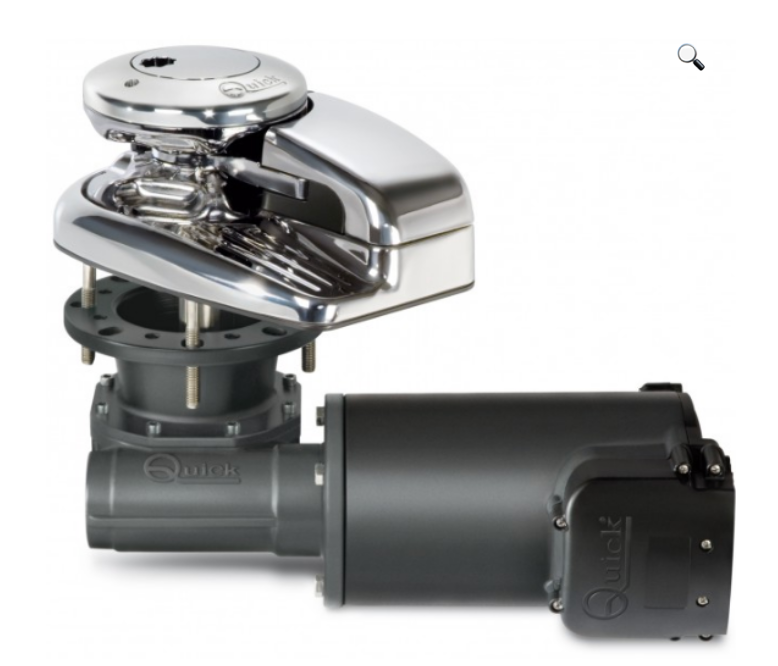

Quick Dylan DH4 Vertical Windlass 1700W 12/24V 10mm or 12mm (Gypsy Only)

SKU: FSDH17120010A00

$6,399.00

CHAIN SIZE

10MM 12MM

VOLTS

12V 24V

Description

The Quick Dylan DH4 1712 is a premium Italian-engineered vertical anchor windlass designed for vessels from 14 to 18 metres (46–59ft). Available in 12V or 24V DC, it delivers 1700W of pulling power with a choice of 10mm or 12mm chain gypsy. This gypsy-only model features a watertight motor, easy-open inspection lid, and AISI 316 stainless steel construction with an anodised aluminium gearbox — built for space efficiency and long-term offshore reliability.

Key Features

Available in 12V or 24V DC — specify voltage when ordering
1700W high-output motor with watertight protection
Choice of 10mm or 12mm chain gypsy — specify at time of order
Gypsy only — no drum, minimal deck footprint
Easy-open inspection lid for straightforward maintenance
Integrated sensor and magnet for chain counter compatibility
Manual free-fall system for reliable anchor deployment
AISI 316 stainless steel base with anodised aluminium gearbox
Suits vessels 14–18m (46–59ft)
CE approved

Specifications

Model: FSDH17120010A00
Series: Quick Dylan DH4
Voltage: 12V or 24V DC
Power: 1700W
Gypsy Size: 10mm or 12mm
Drum: No drum (gypsy only)
Construction: AISI 316 stainless steel base, anodised aluminium gearbox
Suitable Vessel Length: 14–18m (46–59ft)

SKU FSDH17120010A00 is the 12V / 10mm gypsy variant. Contact us for 24V and 12mm gypsy options.
