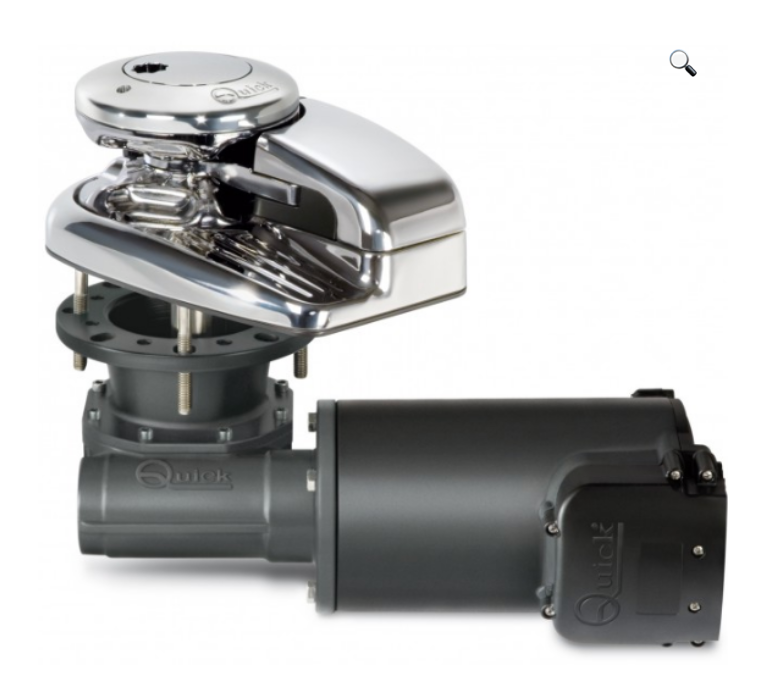

Quick Dylan DH4 Vertical Windlass 2000W 24V 10mm or 12mm (Gypsy Only)

SKU: FSDH20240010A00

$7,299.00

CHAIN SIZE

10MM 12MM

Description

The Quick Dylan DH4 2024 is a premium Italian-engineered vertical anchor windlass designed for vessels from 15 to 20 metres (49–66ft). Running on 24V DC, it delivers 2000W of pulling power with a choice of 10mm or 12mm chain gypsy. This gypsy-only model features a lightweight aluminium base, watertight motor, and vertical-axis design ideal for boats with limited under-deck installation space.

Key Features

24V DC operation
2000W high-output watertight motor
Choice of 10mm or 12mm chain gypsy — specify at time of order
Gypsy only — no drum, minimal deck footprint
Vertical-axis design — ideal for limited under-deck space
Lightweight aluminium base for reduced weight and corrosion resistance
Integrated sensor and magnet for chain counter compatibility
Manual free-fall system for reliable anchor deployment
Suits vessels 15–20m (49–66ft)
CE approved

Specifications

Model: FSDH20240010A00
Series: Quick Dylan DH4
Voltage: 24V DC
Power: 2000W
Gypsy Size: 10mm or 12mm
Drum: No drum (gypsy only)
Motor Protection: Watertight
Construction: Aluminium base
Suitable Vessel Length: 15–20m (49–66ft)

SKU FSDH20240010A00 is the 24V / 10mm gypsy variant. Contact us for the 12mm gypsy option.
