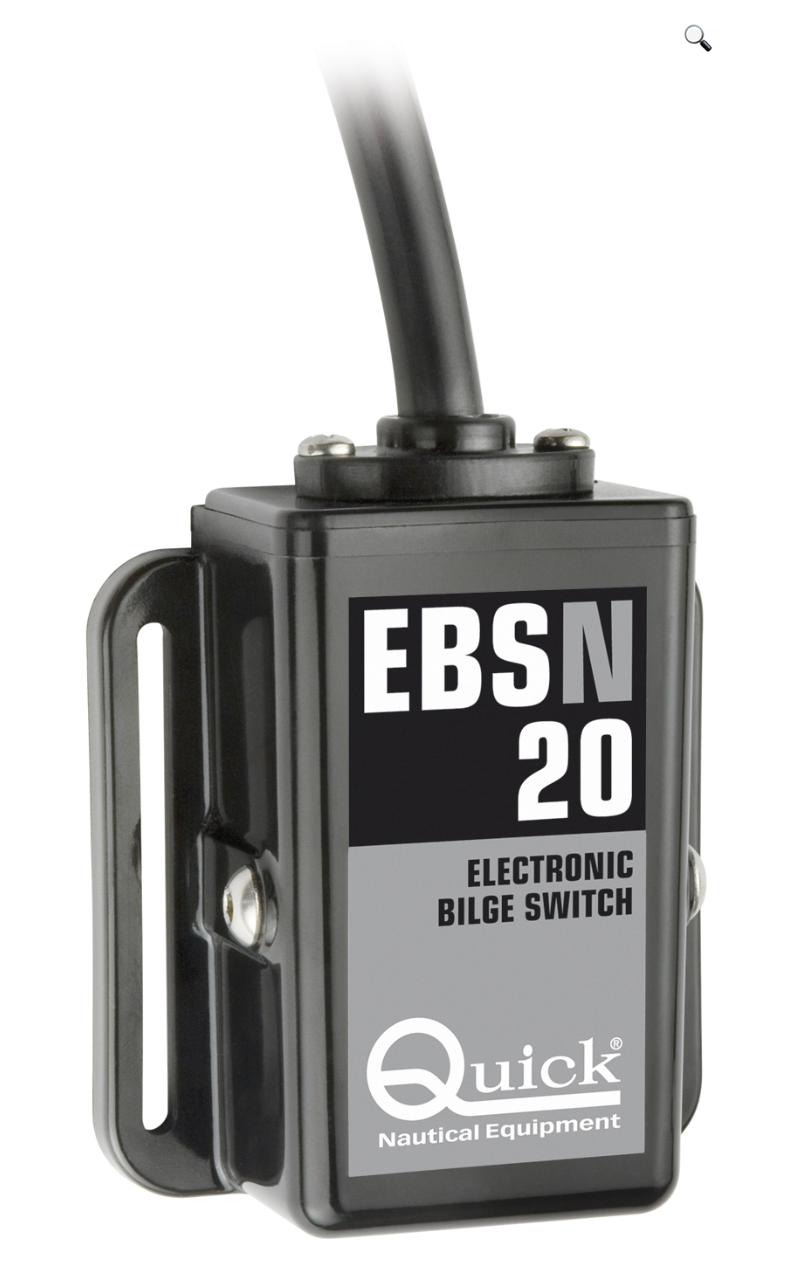

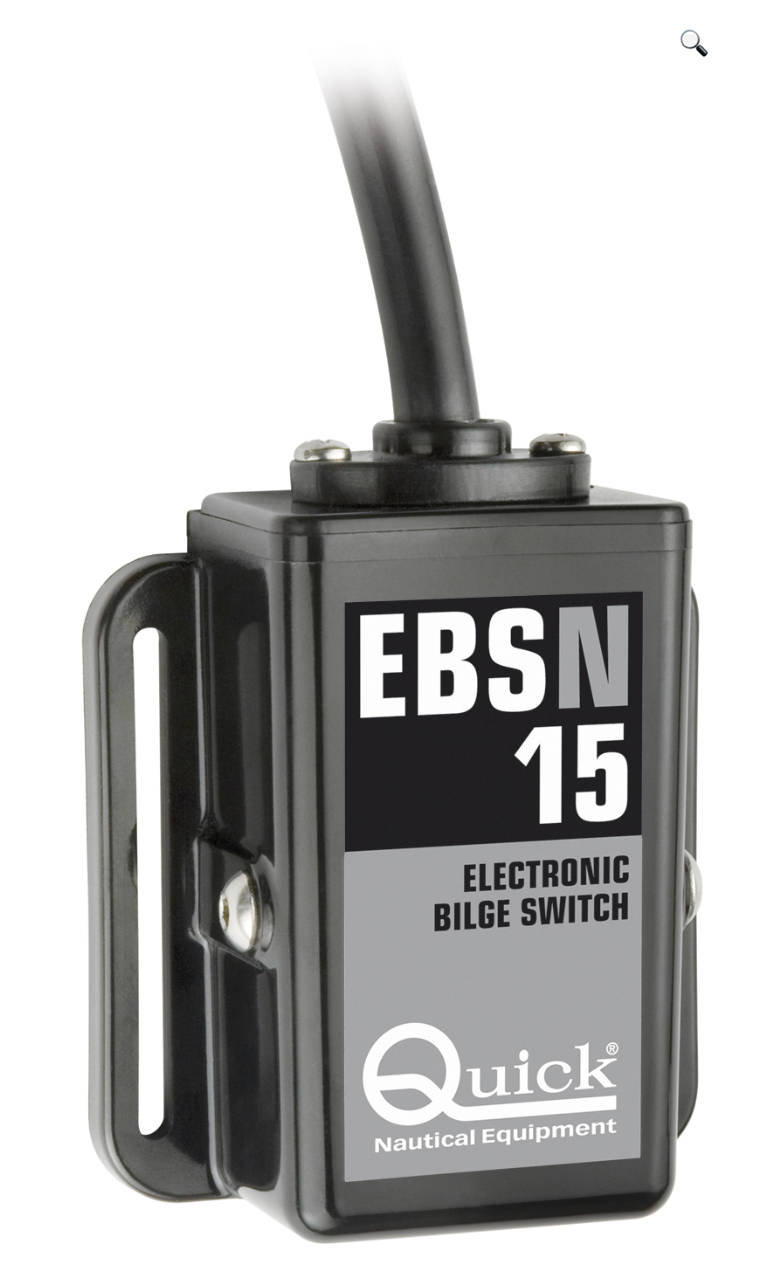

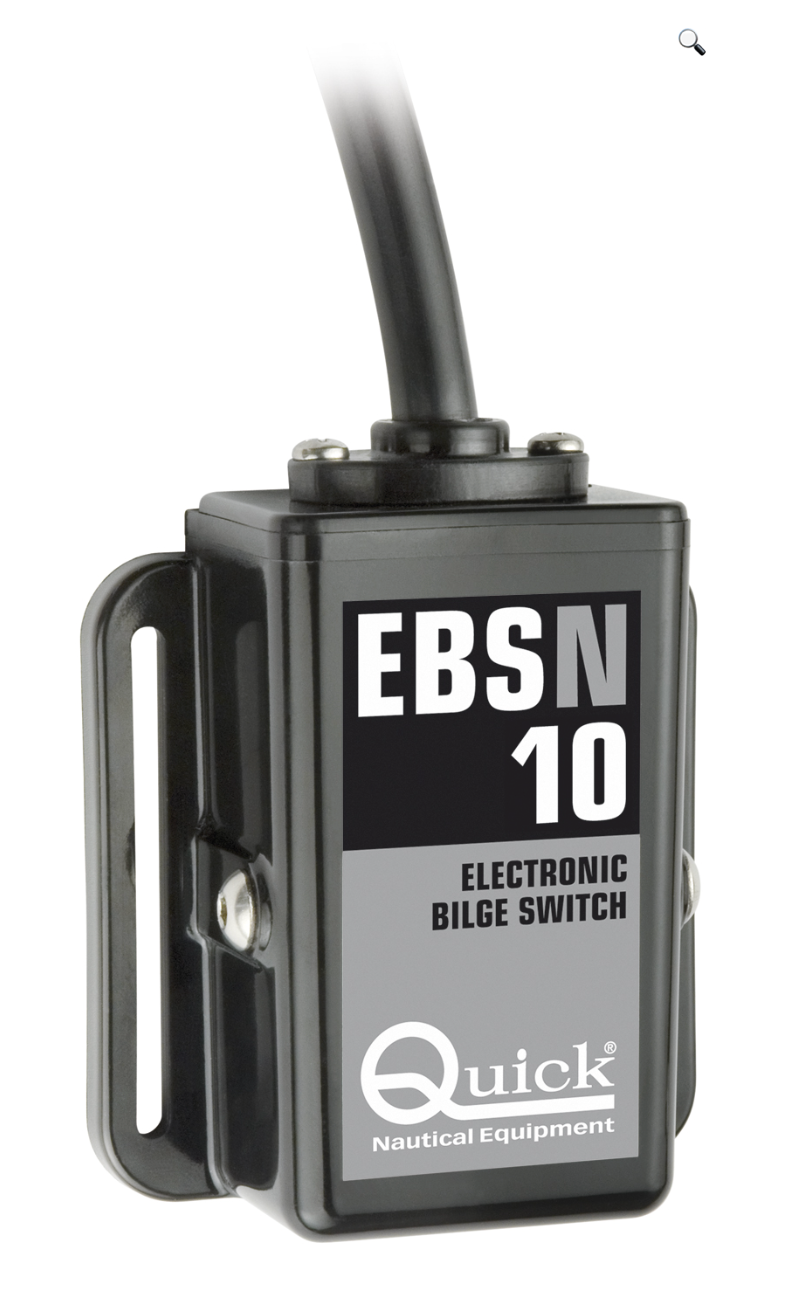

Quick EBSN 10 Electronic Bilge Pump Switch 10/15/20 AMPS

SKU: FDEBSN010000A00

$204.95 $226.68

AMPS

10A 15A 20A

Description

The Quick EBSN is a fully solid-state, non-mechanical electronic switch designed for automatic bilge pump control on 12V and 24V DC systems in 10, 15, and 20 Amps. A built-in microcontroller with an advanced digital filter accurately detects the presence of water, preventing false cycling caused by boat roll. Resin-coated watertight casing for reliable operation in demanding marine environments.

Features and Specifications

Smart Detection: Managed by a built-in microcontroller with an advanced digital filter to accurately distinguish the presence of water.
Anti-Cycling Delay: Delays switch-on and switch-off to prevent the pump from triggering continuously due to boat roll.
Battery Saver: Prevents pump activation if voltage drops below 9V (12V systems) or between 15V–20V (24V systems).
Manual Override: Allows manual remote activation (up to 8 minutes max) via an optional push button or remote panel.
Installation: Must be mounted vertically. Sensor height must be adjusted so the compartment fully drains within the 20-second pump turn-off delay. Wire with a correctly sized fast-acting fuse on the power supply line.

Optional LED indicator and remote control panel available separately.
