Quick Prince DP2 Vertical Windlass 1000W 12/24V 8mm (Gypsy Only)

SKU: FSDP21012008A00

$3,099.00

VOLTS

12V 24V

Description

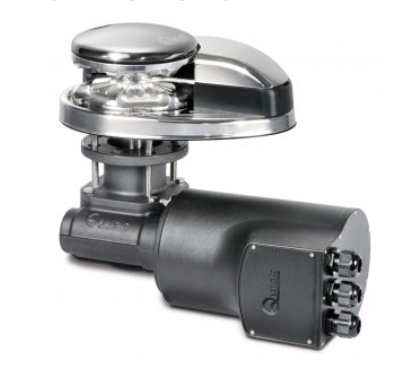

The Quick Prince DP2 1012 is a low-profile vertical windlass engineered for vessels from 8 to 13 metres (26–43ft). Running on 12V OR 24V DC, it delivers 1000W of pulling power with an 8mm chain/rope combination gypsy, manual free-fall system, and integrated chain counter sensor. A gypsy-only configuration keeps the deck profile clean and installation straightforward.

Key Features

12V OR 24V DC operation
1000W motor with IP66/IP67 watertight rating
8mm gypsy — handles calibrated short link chain and spliced 3-strand rope on a single gypsy
Gypsy only — no drum
Manual free-fall system for reliable anchor deployment and retrieval
Integrated sensor and magnet for chain counter compatibility
AISI 316 stainless steel base with recyclable technopolymer gearbox
Suits vessels 8–13m (26–43ft)
CE approved

Specifications

Model: FSDP21012008A00
Series: Quick Prince DP2
Voltage: 12/24V DC
Power: 1000W
Gypsy Size: 8mm (chain and rope)
Drum: No drum (gypsy only)
Working Load: 140 kg
Max Working Load: 420 kg
Max Pull Load: 930 kg
Weight: 16.7 kg
Motor Protection: IP66/IP67 watertight
Construction: AISI 316 stainless steel base, technopolymer gearbox
Suitable Vessel Length: 8–13m (26–43ft)
