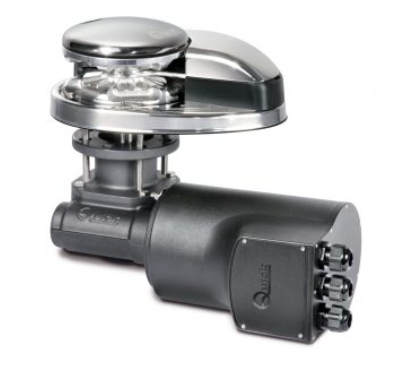

Quick Prince DP2 Vertical Windlass 1000W 24V 6mm (Gypsy Only)

SKU: FSDP21024006A00

$3,699.00

Description

The Quick Prince DP2 1024 is a low-profile vertical windlass engineered for vessels from 8 to 13 metres (26–43ft). Running on 24V DC, it delivers 1000W of pulling power with a 6mm chain/rope combination gypsy, manual free-fall system, and integrated chain counter sensor. A gypsy-only configuration keeps the deck profile clean and installation straightforward.

Key Features

24V DC operation
1000W motor
6mm gypsy — suits 6mm ISO chain and 1/2" rope
Gypsy only — no drum
Manual free-fall system for reliable anchor deployment
Integrated sensor and magnet for chain counter compatibility
AISI 316 stainless steel base with recyclable technopolymer gearbox
Suits vessels 8–13m (26–43ft)
CE approved

Specifications

Model: FSDP21024006A00
Series: Quick Prince DP2
Voltage: 24V DC
Power: 1000W
Gypsy Size: 6mm (chain and rope)
Drum: No drum (gypsy only)
Max Pull Load: 930 kg (2,050 lb)
Current Draw: 75A at working load
Dimensions: H 237.4mm × D 219.5mm
Weight: 15.1 kg (33 lb)
Construction: AISI 316 stainless steel base, technopolymer gearbox
Suitable Vessel Length: 8–13m (26–43ft)
Contents: Contactor units, nylon handle, drilling template, user manual
