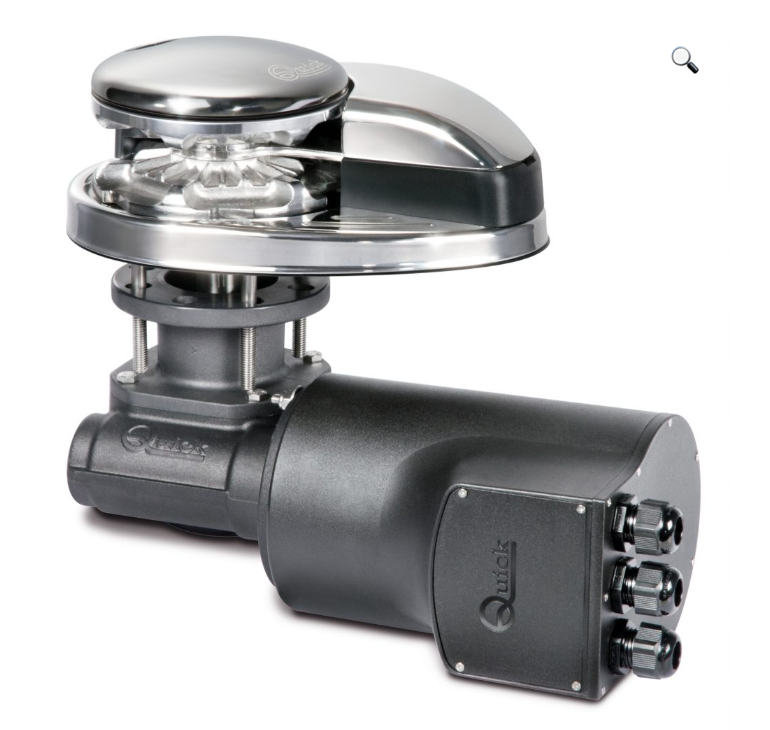

Quick Prince DP3 Vertical Windlass 1500W 12/24V 8mm or 10mm (Gypsy Only)

SKU: FSDP31512008A02

$4,099.00

CHAIN SIZE

8MM 10MM

VOLTS

12V 24V

Description

The Quick Prince DP3 1512 is a high-output vertical anchor windlass designed for vessels from 12 to 15 metres. Available in 12V or 24V DC, it delivers 1500W of pulling power with a choice of 8mm or 10mm ISO/DIN chain gypsy. This gypsy-only model features an IP67 watertight motor, manual free-fall system, and integrated chain counter sensor. Built from AISI 316 stainless steel with an anodised aluminium gearbox for long-term marine durability.

Key Features

Available in 12V or 24V DC — specify voltage when ordering
1500W motor with IP67 watertight rating
Choice of 8mm or 10mm ISO/DIN chain gypsy — specify at time of order
Gypsy only — no drum
Handles rope and chain combination on a single gypsy
Manual free-fall system for reliable anchor deployment
Integrated sensor and magnet for chain counter compatibility
AISI 316 stainless steel base with anodised aluminium gearbox
Suits vessels 12–15m
CE approved

Specifications

Series: Quick Prince DP3
Voltage: 12V or 24V DC
Power: 1500W
Gypsy Size: 8mm or 10mm ISO/DIN
Drum: No drum (gypsy only)
Motor Protection: IP67 watertight
Max Pull Load: 1,100 kg
Max Working Load: 470 kg
Construction: AISI 316 stainless steel base, anodised aluminium gearbox
Suitable Vessel Length: 12–15m

SKU FSDP31512008A05 is the 12V / 8mm gypsy variant. Contact us for 24V and 10mm gypsy options.
