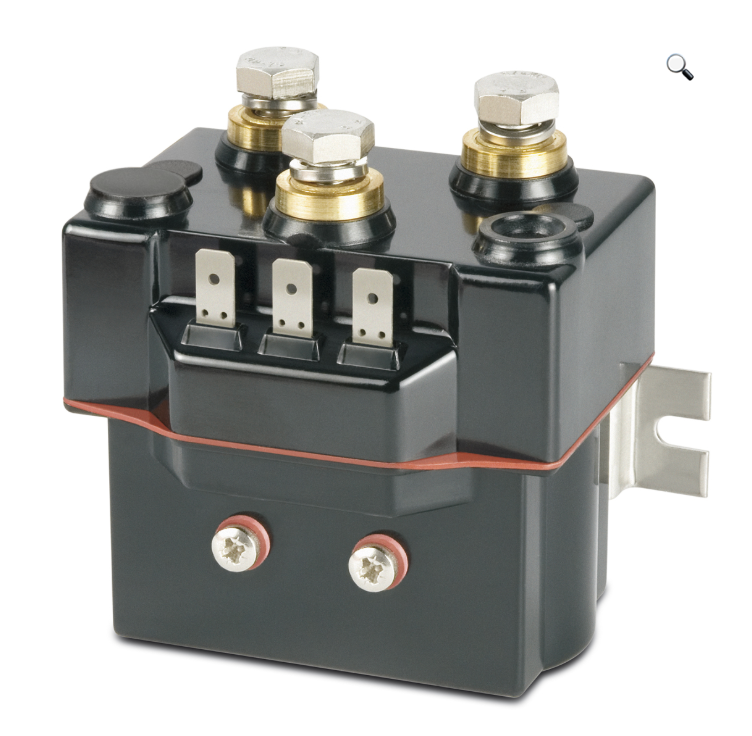

Quick T6315-12 Non-Reversing Contactor 150A 12V (IP66)

SKU: FTT631512000B00

$289.95 $323.27

Description

The Quick T6315-12 is a non-reversing contactor unit designed to operate 12V windlass and capstan electric motors up to 150A. External connections make wiring straightforward and installation easy. The IP66 rated casing (excluding terminals) provides excellent protection against water ingress in demanding marine environments. Compatible with 700W, 1000W, 1400W, 1500W, and 1700W motors. Supplied complete with contactor unit and product sheet.

Note: The T6315 is a non-reversing unit and is not suitable for reversing applications. For reversing capability, select the T6415 series instead.

Key Features

Non-reversing single direction operation for windlass and capstan motors
150A working intermittent current (50% work cycle)
External connections for easy wiring and installation
IP66 rated casing — excellent water ingress protection
Compatible with 700W, 1000W, 1400W, 1500W, and 1700W motors
12V DC operation
Genuine Quick Italian manufacture

Specifications

Model: FTT631512000B00
Series: Quick T6315-12
Voltage: 12V DC
Working Intermittent Current: 150A (50% work cycle)
Compatible Motor Wattages: 700W, 1000W, 1400W, 1500W, 1700W
Reversing Capability: Non-reversing only
Protection Rating: IP66 (excluding terminals)
Origin: Genuine Quick Italian manufacture
Contents: Contactor unit and product sheet
Application: Single direction operation of 12V windlass and capstan electric motors
