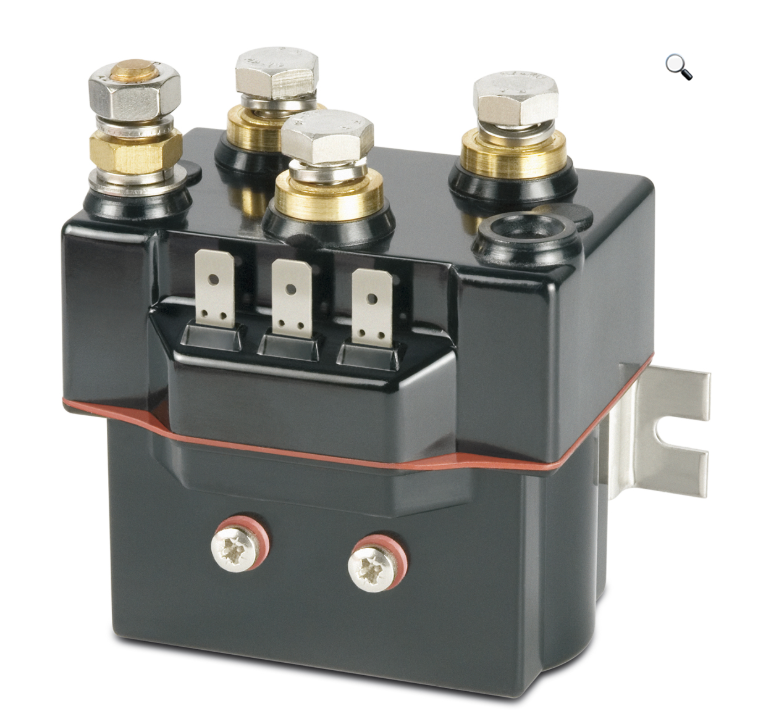

Quick T6415-12 Reversing Contactor 150A 12/24V (IP66)

SKU: FTT641512000A00

$309.95 $313.73

VOLTS

12V 24V

Description

The Quick T6415-12 is a dual direction reversing contactor unit designed to operate 12V and 24V windlasses and capstan electric motors up to 150A. External connections make wiring straightforward and installation easy. Commonly used with remote up/down panels, chain counters, wireless handheld remotes, and foot switches. The IP66 rated casing (excluding terminals) provides excellent water ingress protection — installation in a dry area is always recommended. Rated for higher wattage motors than the T6411 series, making it suitable for a wider range of windlass and capstan installations. Supplied complete with contactor unit and product sheet.

Key Features

Dual direction reversing operation for windlass and capstan motors
150A working intermittent current (50% work cycle)
800A interruption capacity at 48V DC
External connections for easy wiring and installation
IP66 rated casing — installation in a dry area recommended
Compatible with 700W, 1000W, 1400W, 1500W, 1700W, and 2500W motors
12V and 24V DC operation
Genuine Quick Italian manufacture

Specifications

Series: Quick T6415-12/24
Voltage: 12V and 24V DC
Working Intermittent Current: 150A (50% work cycle)
Interruption Capacity: 800A at 48V DC
Compatible Motor Wattages: 700W, 1000W, 1400W, 1500W, 1700W, 2500W
Reversing Capability: Dual direction reversing
Protection Rating: IP66 (excluding terminals)
Origin: Genuine Quick Italian manufacture
Contents: Contactor unit and product sheet
Application: Dual direction reversing operation of 12V and 24V windlass and capstan motors
