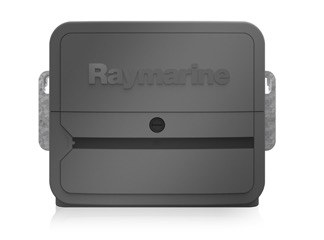

Raymarine ACU-300 Actuator Control Unit. E70139

SKU: E70139

$3,500.00 $3,799.00

Description

The ACU-300 (Actuator Control Unit) is designed for solenoid-controlled steering systems using constant running hydraulic pumps. The ACU-300 houses the main power and drive electronics for direct connection to an external solenoid control. Combine with an EV-1 sensor, autopilot control head, and solenoid-controlled drive system for a complete autopilot system. The ACU-300 includes a remote rotary rudder reference sensor.

Key Specifications

Output Drive

Clutch output: No clutch connection
Drive current output: Maximum continuous 5 A at supply voltage

Physical Dimensions

Width: 285 mm (11.2 in)
Height: 211.5 mm (8.3 in)
Depth: 64.5 mm (2.5 in)
Weight: 2.2 kg (4.84 lbs)

Environmental

Relative humidity: Max. 93%
Waterproof rating: Drip resistant
Storage temperature: -30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature: -20 °C to +55 °C (-4 °F to 131 °F)

Power

Power consumption (standby) - main power supply: 300 mA (12 / 24 V)
Power output to SeaTalkng bus: 3 A @ 12 V (fuse protected at 3 A)
Power consumption (standby) - SeaTalkng bus: 20 mA (12 V)
Nominal supply voltage: 12 / 24 V dc
Operating voltage range: 10.8 V dc to 31.2 V dc
LEN (NMEA 2000 Load Equivalency Number): 1

Conformance Standards

Europe: 2004/108/EC
Australia and New Zealand: C-Tick, Compliance Level 2
