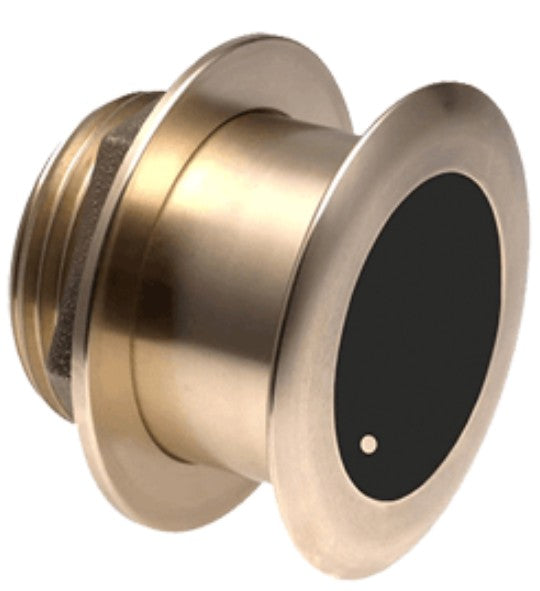

Raymarine B175H Bronze Low Pro"le 1000W D/T Through Hull Transducer 12 Angle. A80047

SKU: A80047

$2,050.00 $2,199.00

Description

B175 Through-Hull CHIRP Transducer Series

The B175 series are low-profile, CHIRP-ready through-hull transducers designed for high-speed applications such as centre consoles. All models feature a tilted ceramic element fixed at 0°, 12°, or 20° within the housing to correct for hull deadrise and orient the sonar beam for maximum echo returns. Transducers can be used individually or in pairs with compatible Raymarine CHIRP sonar modules.

Model Variants

B175L — Low frequency (40–60 kHz), up to 20 kHz total bandwidth. Deep-water performer delivering excellent bottom coverage and fish tracking.
B175M — Medium frequency (85–135 kHz). Reveals fish at medium depths to 457 m (1,500 ft) with ultra-clear target resolution.
B175H — High frequency (150–250 kHz), up to 80 kHz total bandwidth, narrow beamwidth. Ideal for pinpointing fish tight to wrecks and reefs with excellent baitfish and schooling gamefish target separation. Superior shallow-water performance and bottom detail.
B175HW — High frequency, wide beam (150–250 kHz), fixed 25° beam. Provides twice the coverage of narrow-beam options with excellent fish arches. Ideal for coastal and offshore fishing to 152 m (500 ft).

Installation Notes

Single transducer installation requires single transducer operation cable — part no. A80328
Paired installation requires transducer Y-cable — part no. A012146
