Raymarine B265LH D/T Through Hull Low-High Transducer. A80010

SKU: A80010

$3,575.00 $3,799.00

Description

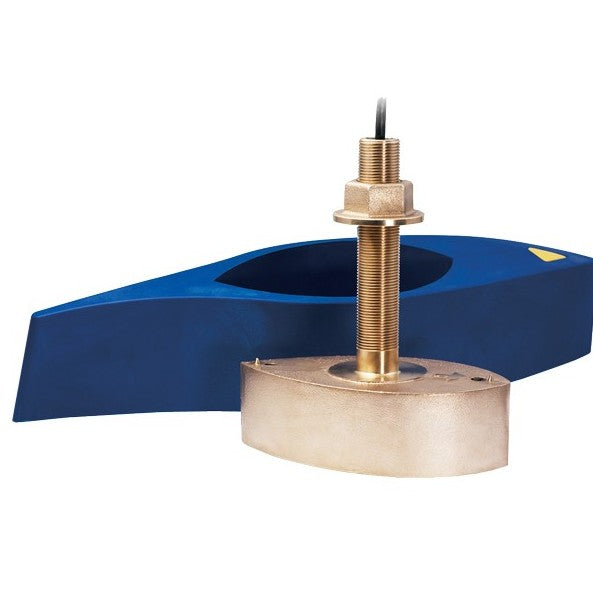

Through Hull CHIRP Transducer — Low/High Configuration

The B265 through-hull transducer features up to 103 kHz of CHIRP range and 8 internal ceramics, delivering excellent target separation in both shallow and deep water. Available in Low/High (LH) or Low/Medium (LM) configurations to suit different sonar requirements.

The high element provides better shallow-water resolution, while the medium element offers improved shallow-water coverage beneath the vessel. Use the low element for deep-water detection of bottom structure and fish to depths of 3,000 m (10,000 ft).

The B265 is fitted with an 11-pin CHIRP transducer connector that mates directly with Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470, CP570, and legacy CHIRP sonar modules. The included high-performance fairing block improves broadband performance at speeds over 30 knots (34 mph).

Key Features

Records depth and temperature
Through-hull mount — bronze construction
Hull deadrise: 0–20°
Compatible hull types: fibreglass or wood
CP450C plug-on cable
Frequency: Low 42–65 kHz, High 130–210 kHz
Power: 1 kW
Low beam width: 16–25°
High beam width: 6–10°
