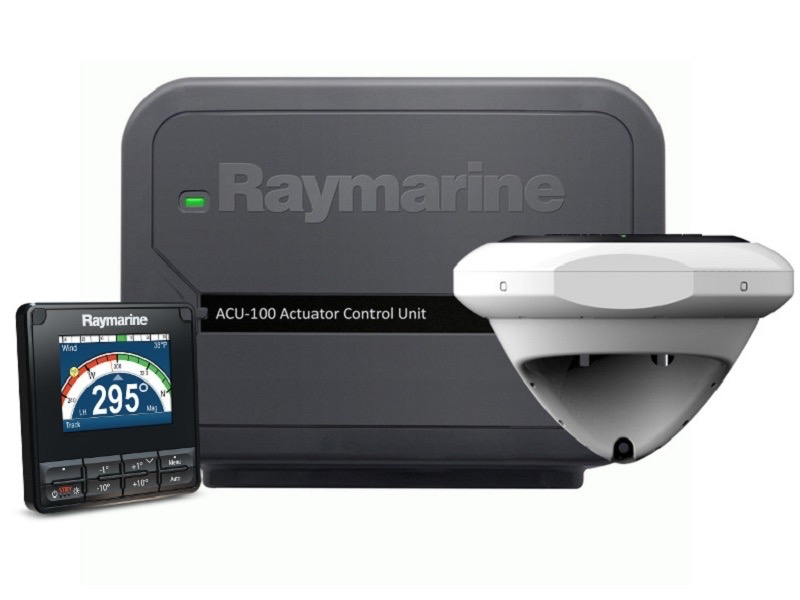

Raymarine Evolution Autopilot Kit — p70s, ACU-100 & EV-1 (No Drive Unit)

The Raymarine Evolution Autopilot Kit pairs the p70s sail control head with the EV-1 Sensor Core and ACU-100 for a complete autopilot system — minus the drive unit. Suitable for mid-sized sailing vessels with mechanical steering, including 0.5L hydraulic, wheel, and tiller drive configurations.

Note: Drive unit not included. Compatible with Raymarine Type 1 Mechanical Linear, wheel drive, and tiller drive units.

What's Included

• EV-1 Sensor Core (E70096)
• ACU-100 Actuator Control Unit (E70098)
• p70s Control Head (E70328)
• SeaTalk^ng Cabling Kit (R70160)

Component Overview

EV-1 Sensor Core

9-axis sensor designed for Evolution mechanical and hydraulic autopilot systems. Single-cable SeaTalk^ng connection carries both power and data to the ACU and wider NMEA 2000 network. Can be mounted above or below deck, upside-down, or off the vessel's centre line.

ACU-100 Actuator Control Unit

Fully sealed for above-deck mounting where space is limited. Provides a secure interface between the steering system and the EV-1 course computer. Designed for wheel-drive and tiller-drive applications on sport boats, runabouts, and smaller cruising yachts.

p70s Control Head

Push-button sail autopilot controller with a 3.5" optically bonded LCD. Wide viewing angles, low power LED backlighting, and a sculpted rubber keypad for reliable operation in all conditions.

• Supported modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, Jog Steer
• Connectivity: SeaTalk^ng and NMEA 2000
• Supplied with: Black and gunmetal bezels, protective suncover

SeaTalk^ng Cabling Kit

• 1 × Power Cable (0.4m)
• 1 × Backbone Cable (5m)
• 1 × Spur Cable (0.4m)
• 1 × 5-way Connector Block
• 2 × T-piece Connector
• 2 × Terminator
