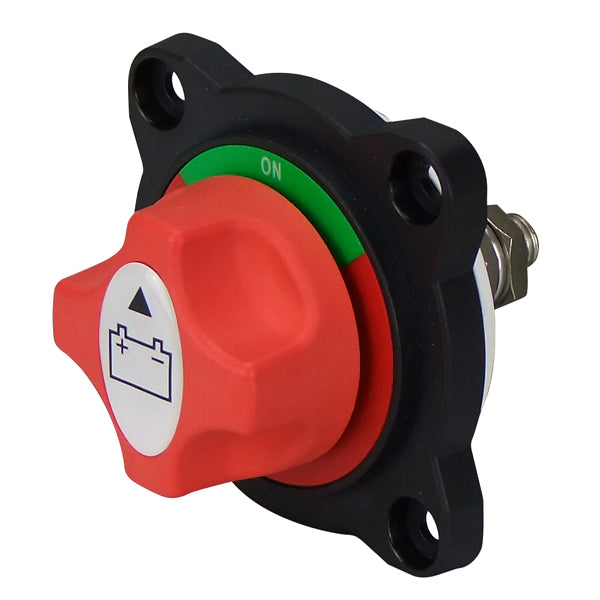

Relaxn Surface & Recessed Mount Battery Isolator Switch - 2 Position

SKU: 8181609

$41.60 $43.60

Unit Qty

1 10

Description

Features:

Robust weather-resistant battery switch features brass terminals and heavy-duty plastic construction making it ideal for marine and automotive applications.
Suitable for applications up to 50VDC.

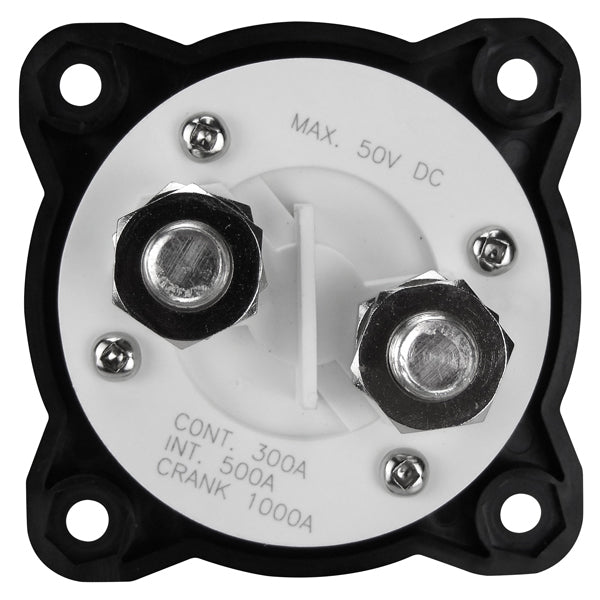

1000A @ 12V for 30 seconds.
500A @ 24V for 30 seconds.
250A @ 50V for 30 seconds.
300A @ 12V continuous load maximum.
150A @ 24V continuous load maximum.
75A @ 50V continuous load maximum.
2 position features - On / Off.
1 year warranty.

Part No.	Cranking Rating	Dimensions L x W x D	Terminal Stud Size	Mounting Holes	Panel Mount Hole Centres	Unit Qty	Function	Volts	Max. Continuous Load
8181609	1000Amps	72mm x 72mm x 66.5mm	M10 x 1.25mm	Dia. 5mm	56.24mm x 56.24mm	1	2	12/24V	300Amps
8555915	1000Amps	72mm x 72mm x 66.5mm	M10 x 1.25mm	Dia. 5mm	56.24mm x 56.24mm	10	2	12/24V	300Amps
