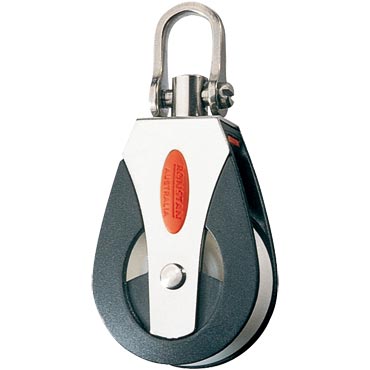

Ronstan Series 40 Block - Single Block - Universal Head RF41100
or 4 interest free payments of $6.87
2750
0
Regular price
$27.50
FEATURES Exceptionally high working loads Low maintenance, long service life Self-lubricating sheave Captive Lock™ universal head Slotted pin shackle eliminates fouled lines PRODUCT INFORMATION All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on...
FEATURES
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
PRODUCT INFORMATION
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
APPLICATIONS
- Mainsheet
- Halyard
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
MATERIALS
- U.V. stabilised Acetal sheaves
- Impact and U.V. resistant, fibre reinforced Nylon cheeks
- Grade 316 stainless steel bearing race
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
| Sheave Ø | 40 mm |
|---|---|
| Max. Rope Ø | 10 mm |
| Max. Cable Ø | - mm |
| Pin Ø | 5.0 mm |
| M.W.L. | 400 kg |
| B. L. | 1000 kg |
| Weight | 71 g |
RELATED ITEMS
| Product No. | Description | |
|---|---|---|
| RF6170 | Block Accessories, Snap shackle head adapter, | |
| RF6171 | Block Accessories, Trunnion snap shackle head adapter, |
SPARE PARTS
| Product No. | Description | |
|---|---|---|
| RF150 | 3/16" pin dia., Standard Dee Shackles, Slotted pin, |
