bosunsboatRF633

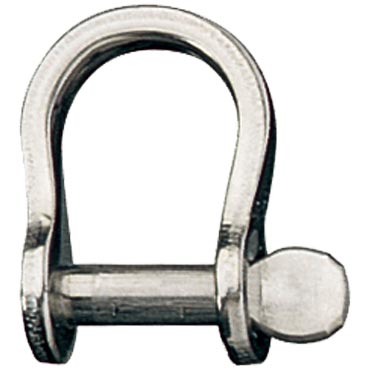

Bow Shackle
High strength in weight ratio
Grade 316 stainless steel bodies & pins
UDL BL = The breaking load of the shackle is applied across the full load of the shackle
PL BL = The breaking load of the shackle is applied at the centre or one side of the shackle
UDL BL: 800kg
PL BL: 600kg
A | 4.0 mm |
---|---|
B | 15.0 mm |
C | 17.0 mm |
D | 11.0 mm |
P.L. B.L. | 600 kg |
U.D.L. B.L. | 800 kg |
Shackle Pin Product No. | - |
Weight | 5 g |
Vendor: |
bosunsboat |
---|---|
SKU: |
RF633 |
Weight: |
0.5 kg |
