Shackle - Bow - RF638
or 4 interest free payments of $2.87
1150
0
Regular price
$11.50
Bow Shackle High strength in weight ratio Grade 316 stainless steel bodies & pins UDL BL = The breaking load of the shackle is applied across the full load of the shackle PL BL = The breaking load of the shackle...

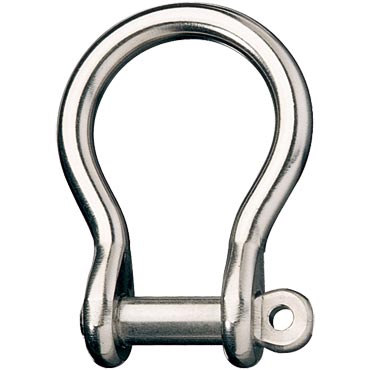

Bow Shackle
High strength in weight ratio
Grade 316 stainless steel bodies & pins
UDL BL = The breaking load of the shackle is applied across the full load of the shackle
PL BL = The breaking load of the shackle is applied at the centre or one side of the shackle
UDL BL: 3600kg
PL BL: 2700kg
Shackle pins drilled for seizing wire
| A | 7.9 mm |
|---|---|
| B | 27.0 mm |
| C | 22.0 mm |
| D | 16.0 mm |
| P.L. B.L. | 2700 kg |
| U.D.L. B.L. | 3600 kg |
| Shackle Pin Product No. | - |
| Weight | 45 g |
| Vendor: |
bosunsboat |
|---|---|
| SKU: |
RF638 |
| Weight: |
0.5 kg |
