Shackle - Halyard - RF1033

Regular price
$17.50

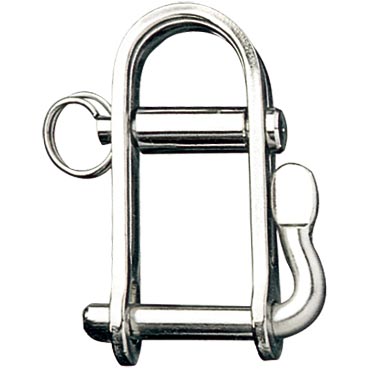

Halyard Shackle
Halyard shackle has a lever action for easy opening and closing with a keyed pin for positive locking
Slotted shacle pins are low profile to prevent snagging on ropes
Lightweight clevis pin shackles use a split ring for security
Shackle keys are both coined and slotted pins
Grade 316 stainless steel bodies & pins
UDL BL = The breaking load of the shackle is applied across the full load of the shackle
PL BL = The breaking load of the shackle is applied at the centre or one side of the shackle
UDL BL: 2100kg
PL BL: 1500kg
A | 6.4 mm |
---|---|
B | 32.0 mm |
C | 13.0 mm |
D | 19.0 mm |
P.L. B.L. | 1500 kg |
U.D.L. B.L. | 2100 kg |
Shackle Pin Product No. | - |
Weight | 55 g |
