Shackle - Long Dee 3/8" 9.5mm pin dia. - RF625
or 4 interest free payments of $6.73
2695
0
Regular price
$26.95
Long D Shackle High strength in weight ratio Grade 316 stainless steel bodies & pins UDL BL = The breaking load of the shackle is applied across the full load of the shackle PL BL = The breaking load of the...

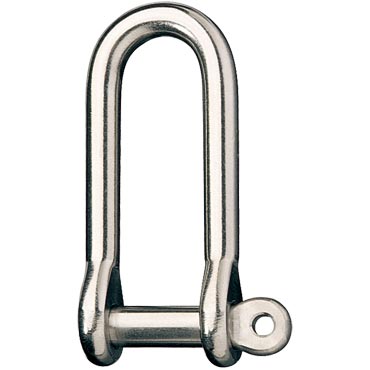

Long D Shackle
High strength in weight ratio
Grade 316 stainless steel bodies & pins
UDL BL = The breaking load of the shackle is applied across the full load of the shackle
PL BL = The breaking load of the shackle is applied at the centre or one side of the shackle
UDL BL: 5800kg
PL BL: 4500kg
Shackle Pins drilled for seizing wire
| A | 9.5 mm |
|---|---|
| B | 60.0 mm |
| C | 17.0 mm |
| P.L. B.L. | 3600 kg |
| U.D.L. B.L. | 5400 kg |
| Shackle Pin Product No. | RF35 |
| Weight | 90 g |
| Vendor: |
bosunsboat |
|---|---|
| SKU: |
RF625 |
| Weight: |
0.5 kg |
