Shackle - Standard Slotted Pin - RF152

or 4 interest free payments of $2.49

Regular price $9.99

Available: In stock
Standard Slotted Pin Shackle Halyard shackle has a lever action for easy opening and closing with a keyed pin for positive locking Slotted shacle pins are low profile to prevent snagging on ropes Lightweight clevis pin shackles use a split ring...
Quantity
SKU: RF152 Categories: , ,

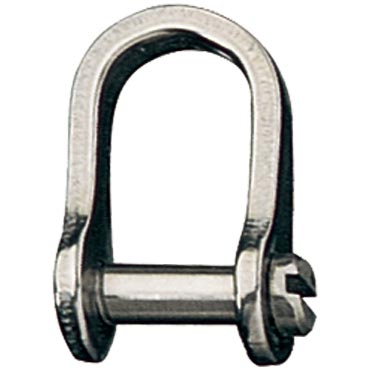

Standard Slotted Pin Shackle

Halyard shackle has a lever action for easy opening and closing with a keyed pin for positive locking

Slotted shacle pins are low profile to prevent snagging on ropes

Lightweight clevis pin shackles use a split ring for security

Shackle keys are both coined and slotted pins

Grade 316 stainless steel bodies & pins

UDL BL = The breaking load of the shackle is applied across the full load of the shackle

PL BL = The breaking load of the shackle is applied at the centre or one side of the shackle

UDL BL: 3600kg

PL BL: 2700kg



A 7.9 mm
B 29.0 mm
C 17.0 mm
P.L. B.L. 2700 kg
U.D.L. B.L. 3600 kg
Shackle Pin Product No. -
Weight 45 g
