Shackle - Swivel - RF576

Regular price
$15.99

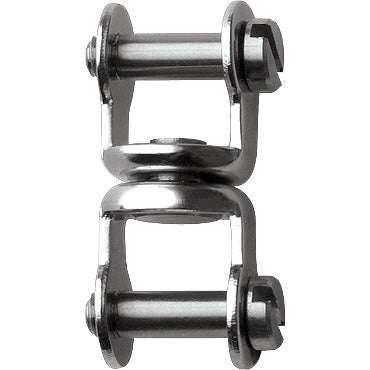

Swivel Shackle Slotted head pin 4.0mm (5/32") pin dia.
Halyard shackle has a lever action for easy opening and closing with a keyed pin for positive locking
Slotted shacle pins are low profile to prevent snagging on ropes
Lightweight clevis pin shackles use a split ring for security
Shackle keys are both coined and slotted pins
Grade 316 stainless steel bodies & pins
UDL BL = The breaking load of the shackle is applied across the full load of the shackle
PL BL = The breaking load of the shackle is applied at the centre or one side of the shackle
UDL BL: 500kg
PL BL: 350kg
A | 4.0 mm |
---|---|
B | 10.0 mm |
C | 22.0 mm |
D | 6.0 mm |
P.L. B.L. | 350 kg |
U.D.L. B.L. | 500 kg |
Shackle Pin Product No. | - |
Weight | 10 g |
Vendor: |
bosunsboat |
---|---|
SKU: |
RF576 |
Weight: |
0.5 kg |
