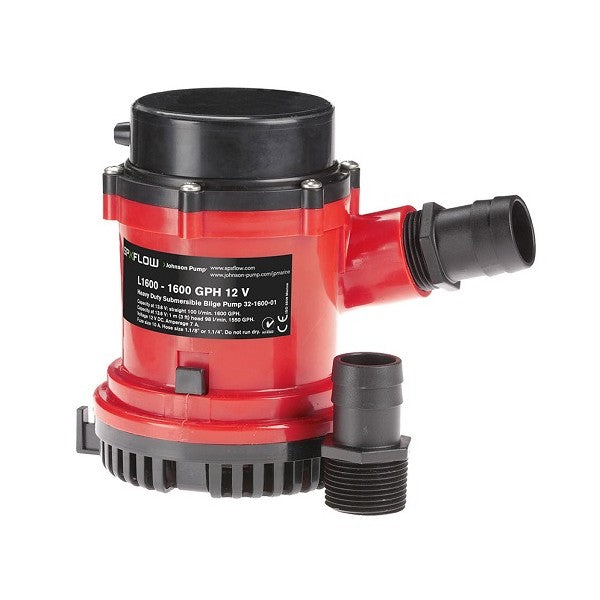

SPX Heavy Duty Bilge Pump 1600 GPH to 4000 GPH

Designed to meet and exceed the tough demands of commercial and recreational duty. This Pumps has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The L2200 motor is sealed off by a mechanical seal design, while the L1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The L4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal baseplate and a choice of 1½" or 2" ports makes for a simple installation. Removable check valve included.



Specifications:

• Shaft: 2343 grade stainless steel
• Wire size: 1.3 mm2 – 16 GA
• Wire length: 1.8 m
• Max ø: 108

  Other Details:



  BLA Code	Model	Capacity 1m head L/m          gph		Capacity straight (13.6 V) L/m              gph		Power V    Amps		Fuse Size	Max Length mm	Height mm	Connection
  131806	L1600	98	1550	100	1600	12	7	10A	1.3	149	11/8" and 1¼"
  131808	L1600	98	1550	100	1600	24	3.5	6A	1.3	149
  131818	L2200	120	1900	130	2060	12	7.5	12A	2.7	177
  131820	L2200	120	1900	130	2060	24	4.5	6A	2.7	177
  131823	L4000	164	2600	252	4000	12	15	25A	2.45	216	1½" and 2"
  131824	L4000	164	2600	252	4000	24	7.5	15A	2.45	216
