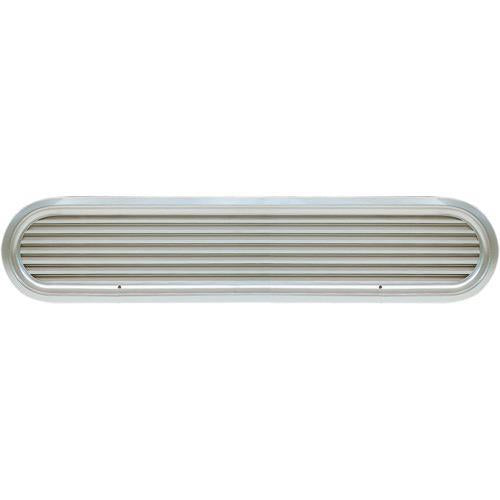

Vetus Air Suction Vent - Type ASV

SKU: ASV150A

$499.95 $511.09

Description

The Vetus Type ASV Air Suction Vent is engineered to provide the correct volume of ventilation air for marine engine bays. In addition to combustion air, engines require ventilation air to dissipate residual heat — approximately 6.1 m³ per kW (4.5 m³ per hp) per hour at a maximum air velocity of 3 m/s. The ASV range is sized accordingly, with model numbers corresponding to the engine horsepower rating they are designed to suit.

Constructed with a polished anodised aluminium frame and naturally anodised aluminium grilles for a premium, corrosion-resistant finish. Available in 12 sizes to suit engines from 20hp to 150hp.

Polished anodised aluminium frame with naturally anodised aluminium grilles
Sized to match engine horsepower — model number indicates suitable HP rating
Ventilation capacity: ~6.1 m³/kW/hr at max 3 m/s air velocity
12 sizes available: ASV020A through ASV150A
Select your required length and cut-out dimension from the variant options above

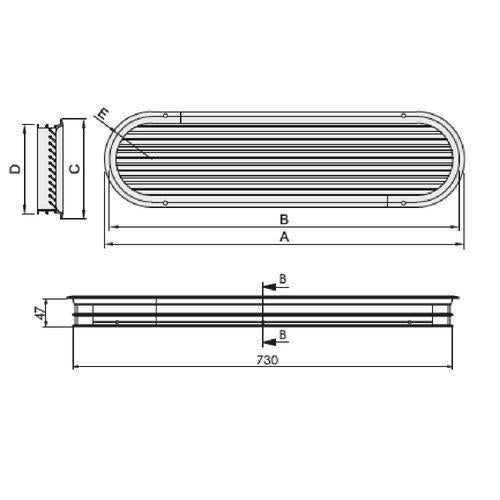

Specifications (all dimensions in mm)

Model	A (mm)	B=Cutout (mm)	C (mm)	D=Cutout (mm)	E=Cutout radius (mm)	Free flow area (dm²)
ASV020A	300	280	117	97	R48.5	0.83
ASV025A	350	330	117	97	R48.5	1.0
ASV030A	360	340	130	110	R55	1.22
ASV040A	450	430	130	110	R55	1.59
ASV050A	490	470	146	126	R63	2.02
ASV060A	570	550	146	126	R63	2.41
ASV070A	590	570	159	139	R69.5	2.83
ASV080A	660	640	159	139	R69.5	3.21
ASV090A	670	650	172	152	R76	3.63
ASV100A	730	710	172	152	R76	4.0
ASV125A	750	730	198	178	R89	5.03
ASV150A	890	870	198	178	R89	6.03
