Vetus Battery Splitter — MOSFET, 12/24V, 150A, 2 or 3 Battery Banks (3 Models)

SKU: BS1503C

$434.95 $443.71

Color

NA

Size

Max Charging: 150A - Input/Output: 1/3 - Weight: 1.2kg Max Charging: 150A(2x) - Input/Output: 2/3 - Weight: 1.3kg Max Charging: 150A - Input/Output: 1/2 - Weight: 1.0kg

Description

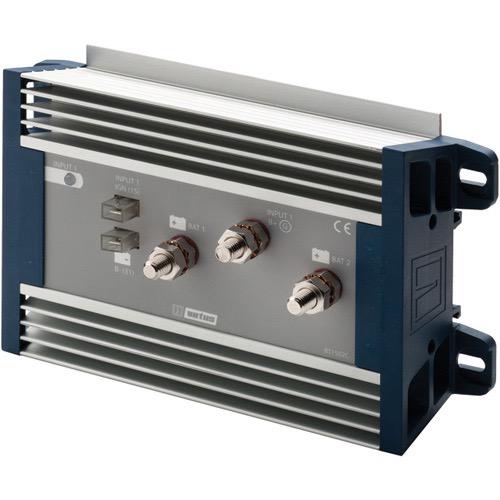

Vetus Battery Splitter — MOSFET, 12/24V

The Vetus battery splitter simultaneously charges 2 or 3 battery banks from any charging source (alternator and/or battery charger) with negligible voltage drop, thanks to MOSFET transistors rather than conventional diodes. A discharged battery cannot drain another bank, and an auxiliary connection provides feedback to voltage-sensed alternators.

Once the engine starts, the alternator automatically recharges all connected battery banks. Suitable for 12V and 24V installations with 1 or 2 alternators.

Key Features

MOSFET technology — negligible voltage drop vs diode-based splitters
Simultaneously charges 2 or 3 battery banks
Isolated banks — a flat battery cannot discharge another
Auxiliary connection for voltage-sensed alternators
Suitable for 12V and 24V DC systems
Input voltage: 8–30V DC
Maximum charging current: 150A (per input)
3 models: 1-in/2-out, 1-in/3-out, and 2-in/3-out

Specifications

SKU	Inputs	Outputs (Banks)	Max Charge Current (A)	Input Voltage (V DC)	Weight (kg)
BS1502C	1	2	150	8–30	1.0
BS1503C	1	3	150	8–30	1.2
BS15032C	2	3	150 × 2	8–30	1.3
